| MODEL | YP-R-HV20 | YP-R-HV25 | YP-R-HV30 | YP-R-HV35 | YP-R-HV40 / YP-R-HV45 | YP-R-HV50 | ||
| Cell chemistry | LiFePO4 | |||||||
| Module energy (kWh) | 5.12 | |||||||
| Module nominal voltage (V) | 51.2 | |||||||
| Module capacity (Ah) | 100 | |||||||
| Cell model/Configuration | 3.2V 100Ah / 64S1P | 3.2V 100Ah / 80S1P | 3.2V 100Ah / 96S1P | 3.2V 100Ah / 112S1P | 3.2V 100Ah / 128S1P | 3.2V 100Ah / 144S1P | 3.2V 100Ah / 160S1P | |
| System nominal voltage (V) | 204.8 | 256 | 307.2 | 358.4 | 409.6 | 460.8 | 512 | |
| System operating voltage (V) | 172.8~224 | 215~280 | 259.2~336 | 302.4~392 | 345.6~448 | 388.8~504 | 432~560 | |
| System energy (kWh) | 20.48 | 25.6 | 30.72 | 35.84 | 40.96 | 46.08 | 51.2 | |
| Charge/ Discharge Current (A) | Recommend | 50 | ||||||
| Max | 100 | |||||||
| Working temperature | Charge: 0℃~55℃; Discharge: -20℃~55℃ | |||||||
| Communication port | CAN2.0/RS485/WIFI | |||||||
| Humidity | 5~85% RH Humidity | |||||||
| Altitude | ≤2000 m | |||||||
| IP rating of enclosure | IP20 | |||||||
| Dimension (W*D*H, mm) | 538*492*791 | 538*492*941 | 538*492*1091 | 538*492*1241 | 538*492*1391 | 538*492*1541 | 538*492*1691 | |
| Weight approximate (kg) | 195 | 240 | 285 | 330 | 375 | 420 | 465 | |
| Installation location | Rack Mounting | |||||||
| Storage temperature (℃) | 0℃~35℃ | |||||||
| Recommend depth of discharge | 90% | |||||||
| Cycle life | 25±2℃, 0.5C/0.5C, EOL70%≥6000 | |||||||
Strict shipping packaging standards are adhered to to guarantee the impeccable condition of our high-voltage commercial battery storage systems during transit. Each battery is carefully packaged with multiple layers of protection to effectively protect against any potential physical damage. Our efficient logistics system ensures prompt delivery and timely receipt of your order.
| Single Battery Module | 5.12kWh - 51.2V 100Ah LiFePO4 rack battery |

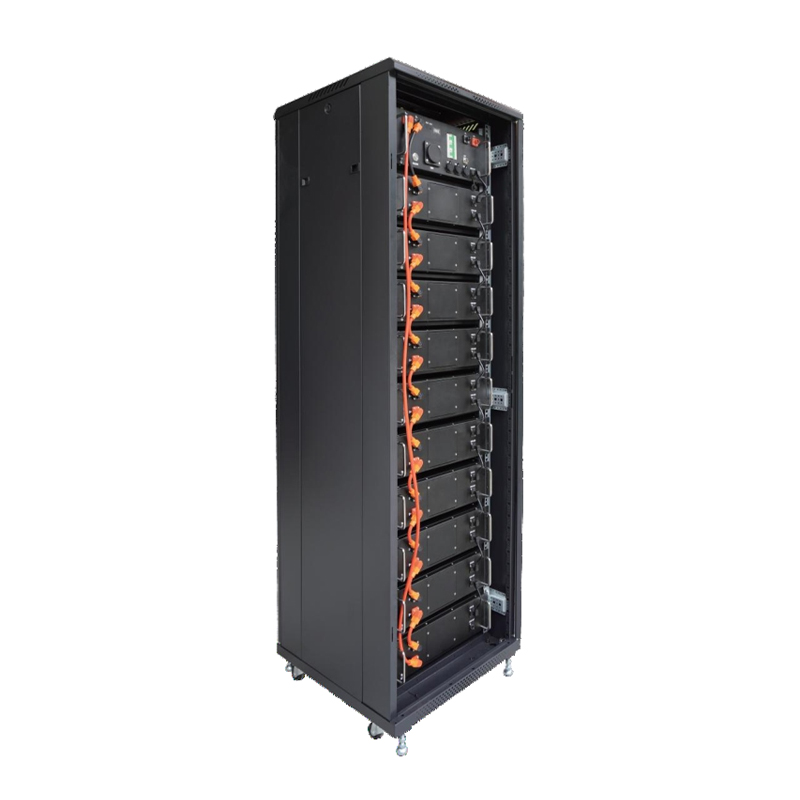

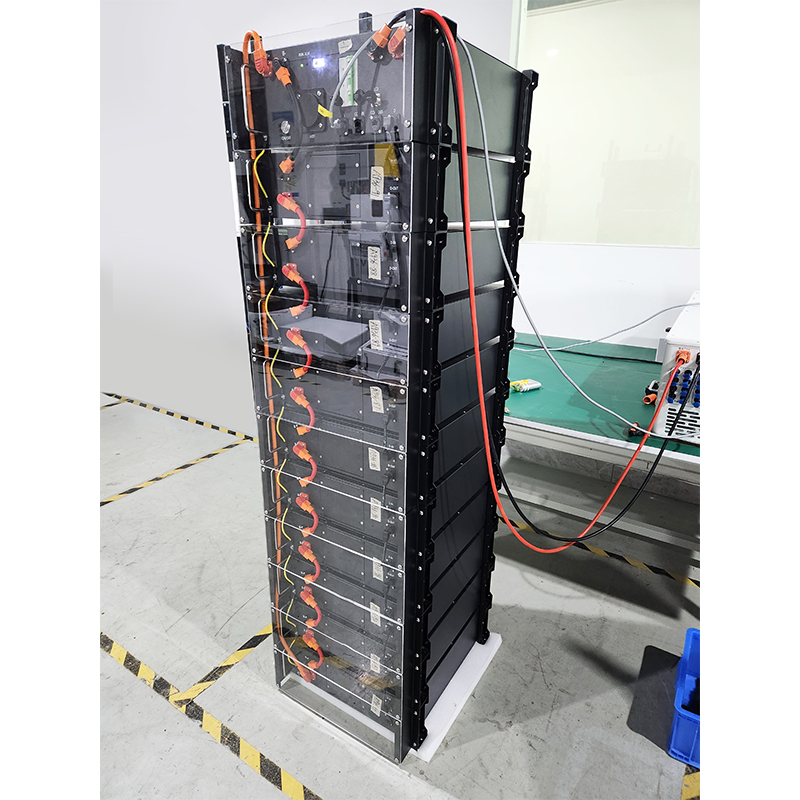

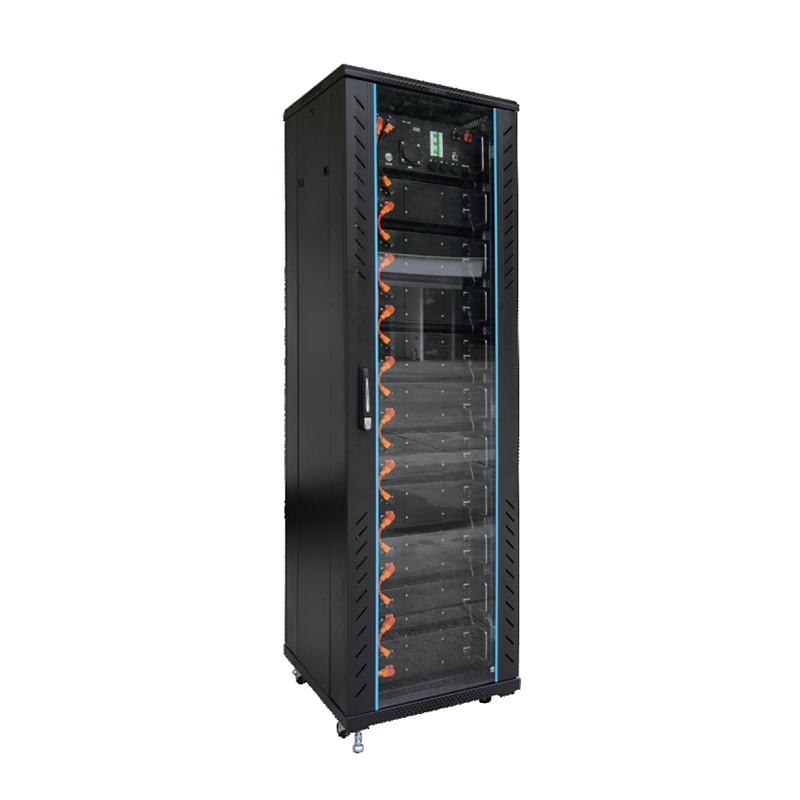

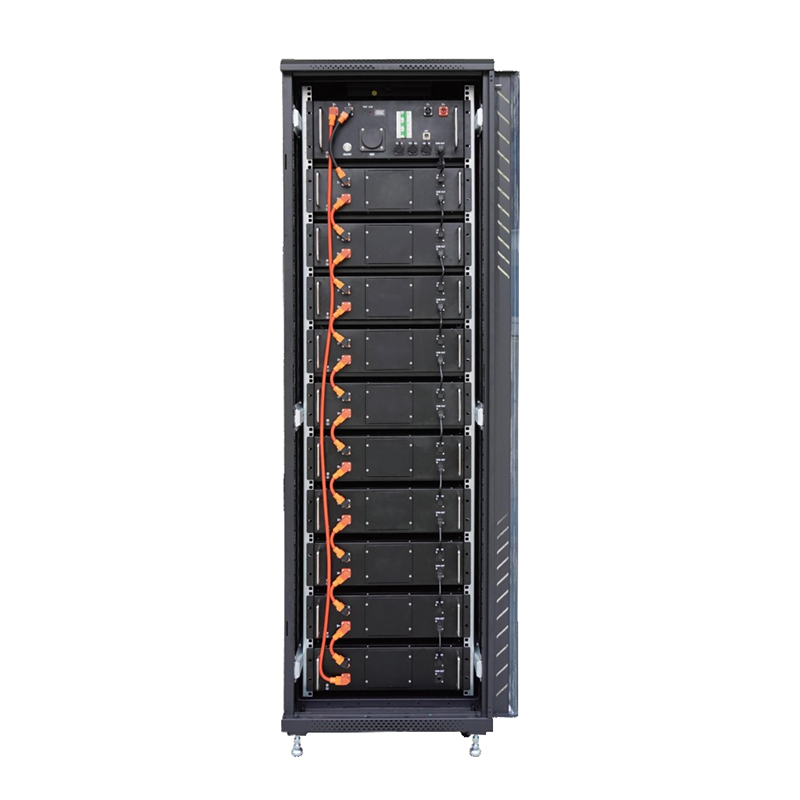

| Whole Battery Storage ESS | 51.2kWh - 512V 100Ah (10 units in series) |
Quick installation, standard of 19-Inch embedded design module is easy to install and maintain.
Cathode material is made from LiFePO4 with high safety performance and long cycle life. The module has less self-discharge up to 6 months without charging it on shelf, with no memory effect, and excellent performance in shallow charge and discharge.
It has protective functions, including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state, balance current and voltage of each cell.
The entire module is non-toxic, non-polluting, and environmentally friendly.
Multiple battery modules can be used in parallel for expanding capacity and power. Support for USB upgrades, WiFi upgrade(optional), and remote upgrades (compatible with the Deye inverter).
Working temperature range is from -20℃ to 55℃, with excellent discharge performance and cycle life.
A commercial battery storage system is an environmentally friendly technology designed to store electrical energy for future use. These systems play a crucial role in a business's energy infrastructure, allowing them to store electricity during low demand periods and release it during high demand.
Commercial solar batteries can be installed in various locations, including factories, commercial buildings, large retail stores, and critical nodes on the grid. They are typically installed on the ground or walls near the building's interior or exterior, and are monitored and operated through a smart control system.
Customize your battery energy storage system (BESS)! We offer flexible OEM/ODM services, including customizing battery capacity, designing and branding to meet your projects. Fast turnaround, expert support, and scalable solutions for commercial and industrial energy storage.
Our residential and commercial lithium battery storage utilizes advanced lithium iron phosphate technology to deliver exceptional performance and superior safety. Each LiFePO4 battery storage unit has received certifications from various international organizations, including MSDS, UN38.3, UL1973, CB62619, and CE-EMC. These certifications verify that our products meet the highest quality and reliability standards globally. In addition to delivering outstanding performance, our batteries are compatible with a wide range of inverter brands available on the market, providing customers with greater choice and flexibility. We remain dedicated to providing reliable and efficient energy solutions for both residential and commercial applications, catering to the diverse needs and expectations of our customers.
