| Specification Item | Details |
|---|---|
| Model | YP-280HV 307V-85KWH |
| Combination method | 96S1P |
| Rated Capacity | Typical: 280Ah | Minimum: 276Ah |
| Factory Voltage | 307.2-316.8V |
| Voltage at end of Discharge | ≤259.2V |
| Charging Voltage | 336V |
| Internal Impedance | ≤100mΩ |
| Max Charging Current (Icm) | 140A |
| Limited Charging Voltage (Ucl) | 350.2V |
| Max Discharging current | 140A |
| Discharge Cut-off voltage (Udo) | 240V |
| Operation Temperature Range | Charge: 0~55℃ | Discharge: -20~55℃ |
| Storage Temperature Range | -20℃~25℃ |
| Single module Size/weight | 778.5*442*230mm / About 125Kg |
| Main control box size/weight | 620*442*222mm / About 22Kg |
| System size/weight | 550*776*1985mm / About 850Kg |
Integrated high-quality EVE 280AH LFP cells with high cycle life >6000 cycles, ensured cells, modules and BMS.
It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system automatically manages charge/discharge state and balances current and voltage of each cell.
Designed for long cycle life and superior performance to guarantee overall cost efficiency over its lifetime.
The whole module is non-toxic, non-polluting and environmentally friendly.
Plug & play design, requiring no additional wiring connection for simple setup.
Working temperature range is from -20℃ to 55℃, with excellent discharge performance and cycle life.
Compatible with Top inverter brands: GOODWE ET, GROWATT SPH, Deye, Megarevo, Solis.
A commercial battery storage system is an environmentally friendly technology designed to store electrical energy for use. These systems play a crucial role in a business's energy infrastructure, allowing them to store electricity during low demand periods and release it during high demand.

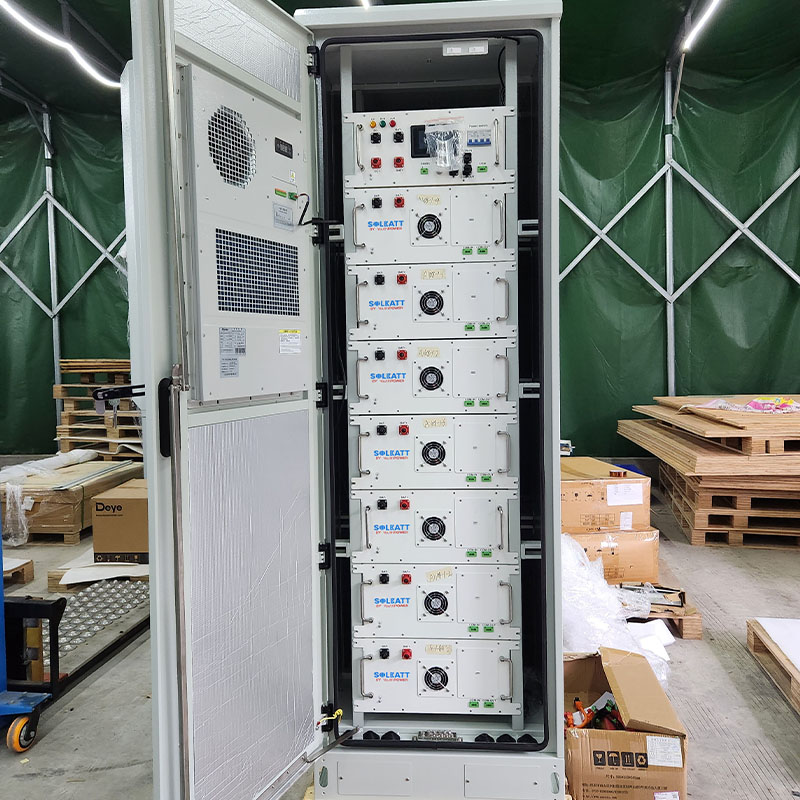

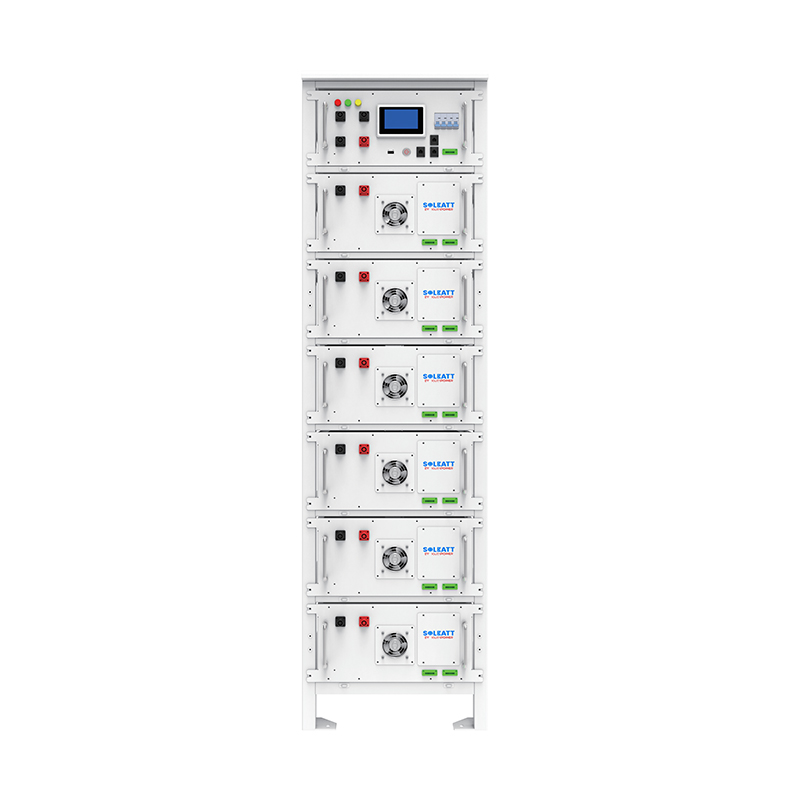

Our high voltage C&I energy storage system 280Ah series can provide industrial and commercial users with a complete solution of outdoor integrated PV & energy storage system. It can be widely used in scenarios such as charging stations, factories, industrial parks, and commercial buildings.
Our LiFePO4 commercial battery storage systems are designed with safety and performance in mind, meeting global standards for quality and reliability. It has key international certifications, including UL 1973, IEC 62619, and CE, ensuring compliance with rigorous safety and environmental standards. Additionally, it is certified for UN38.3, demonstrating its safety for transportation, and comes with a MSDS (Material Safety Data Sheet) for safe handling and storage.
Choose our commercial battery storage for a secure, sustainable, and efficient energy solution that is trusted by industry professionals worldwide.
Our 85kWh-307V 280Ah commercial ESS is securely packed using durable foam and sturdy cartons to ensure protection during transit. Each package is clearly labeled with handling instructions and complies with UN38.3 and MSDS standards for international shipping. With efficient logistics, we offer fast and reliable shipping, ensuring the battery reaches customers quickly and safely. For global delivery, our robust packing and streamlined shipping processes guarantee the product arrives in perfect condition, ready for use.
| Battery Category | Configuration Details |
|---|---|
| Battery Cells | EVE 3.2V 280Ah LiFePO4 cells |
| Single Battery Module | 14.336kWh-51.2V 280Ah LiFePO4 rack battery |
| Whole Commercial ESS | 86.016kWh - 307.2V 280Ah (6 units in series) |
Customize your commercial energy storage system! We offer flexible OEM/ODM services—tailor battery capacity, design, and branding to fit your projects. Fast turnaround, expert support, and scalable solutions for commercial and industrial energy storage.
The system is integrated with high-quality EVE 3.2V 280Ah LiFePO4 cells, offering a long cycle life of over 6,000 cycles for durable and efficient performance.
The system features a built-in Intelligent BMS that protects against over-discharge, over-charge, over-current, and extreme (high or low) temperature conditions. It also automatically manages the state of charge/discharge and balances the voltage and current of each cell.
Our C&I battery system is fully compatible with top-tier global inverter brands, including GOODWE ET, GROWATT SPH, Deye, Megarevo, and Solis.
Our systems are compliant with global safety and transport regulations, boasting certifications such as UL 1973, IEC 62619, CE, UN38.3, and MSDS.

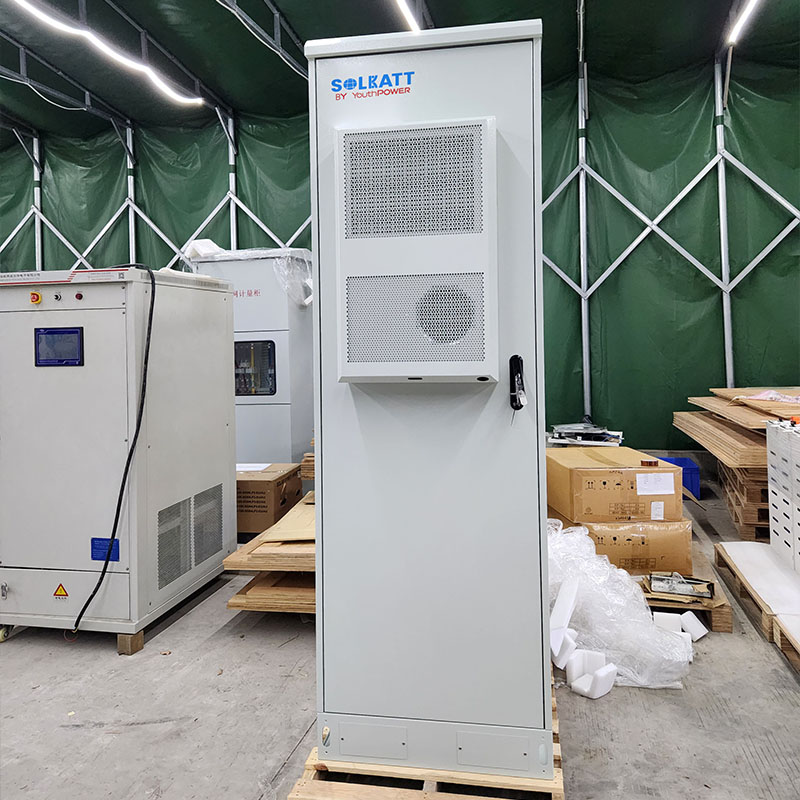

This outdoor-integrated PV & energy storage system is widely applied in charging stations, factories, industrial parks, commercial buildings, distributed new energy installations, data centers, and microgrids.
Yes, we provide comprehensive OEM/ODM services. We can customize the overall system capacity, layout, physical design, and branding to align with your specific commercial and industrial projects.
