Best High Voltage 409V 280AH 114KWh Battery Storage ESS Factories, Price

1 / 5

Best High Voltage 409V 280AH 114KWh Battery Storage ESS Factories, Price

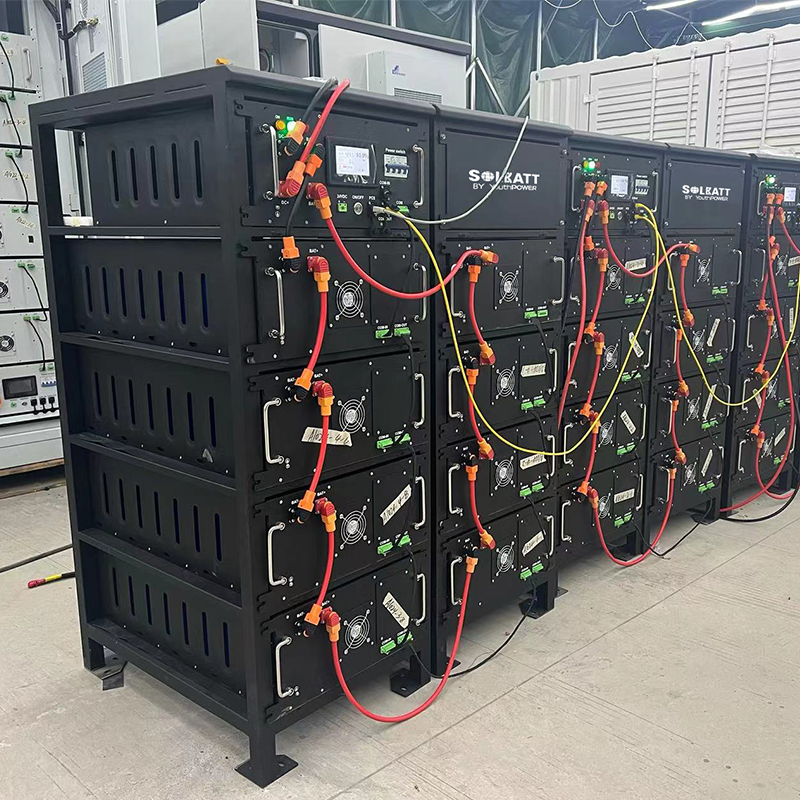

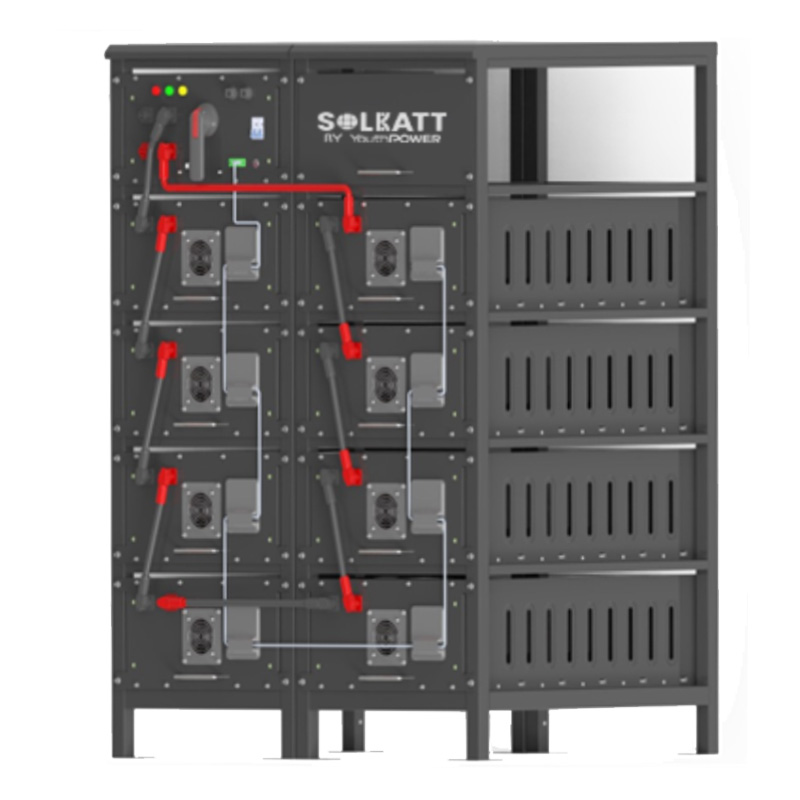

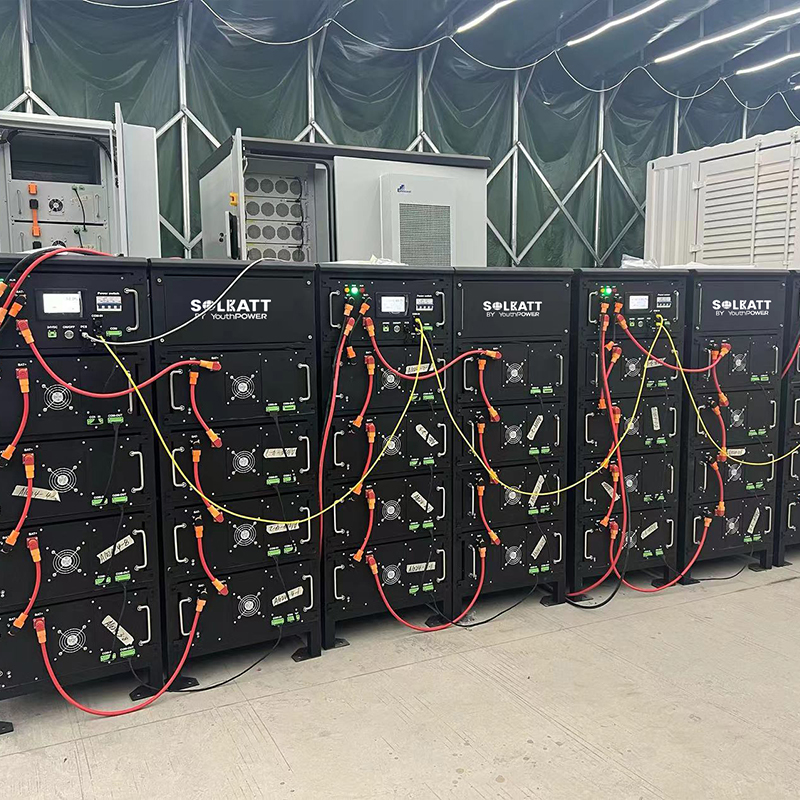

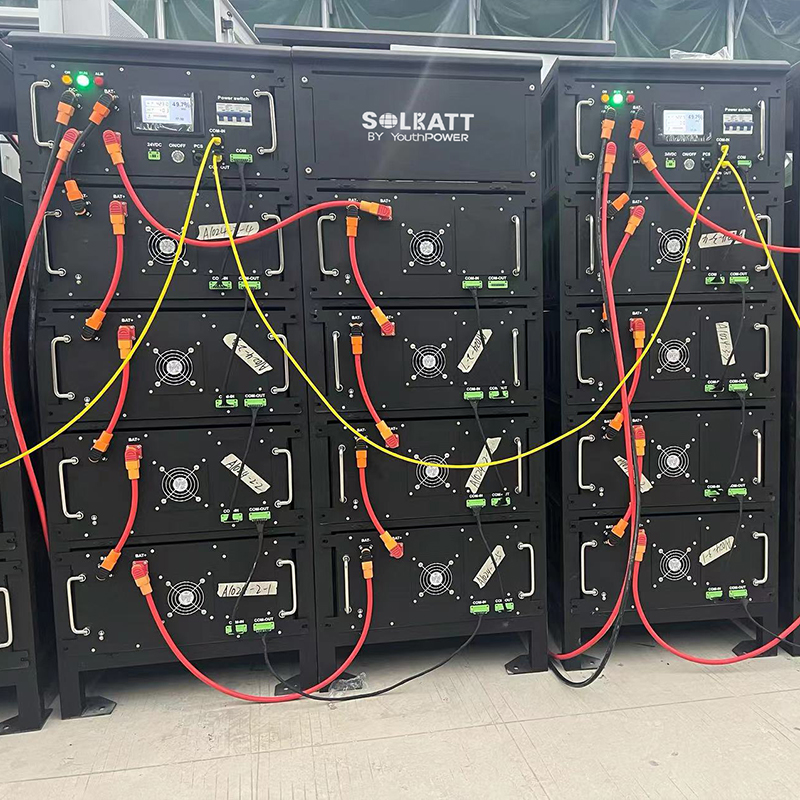

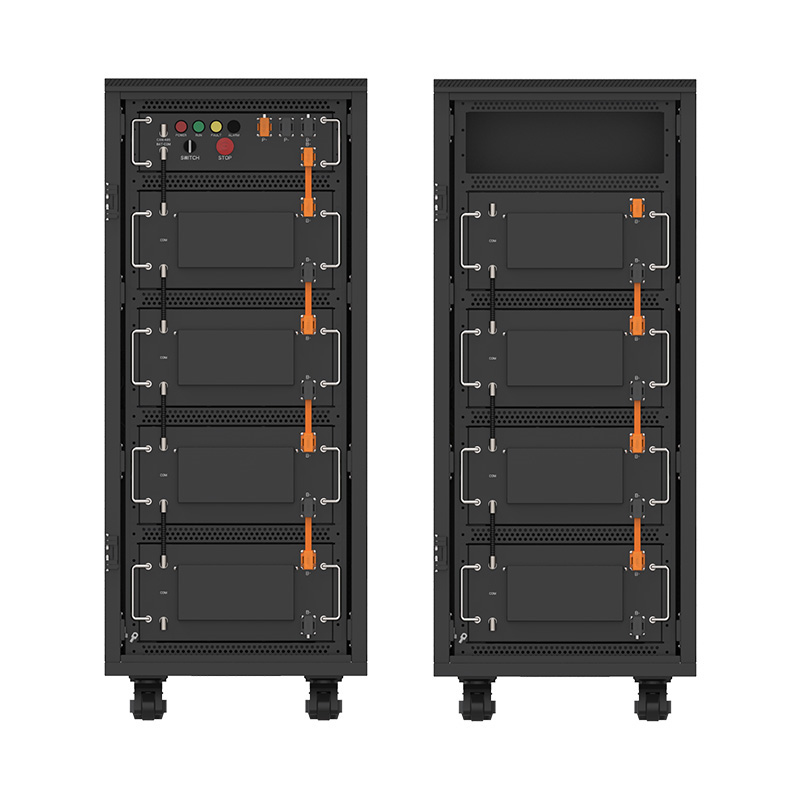

Commercial batteries are designed for businesses and industrial sectors. This includes large factories, commercial buildings, data centers, and other similar facilities. Power companies may also use them to regulate grid load and respond to peak demand. The use of commercial battery storage is growing rapidly, especially as renewable energy becomes more widespread and power markets are reformed. As technology advances and costs decline, more and more businesses are considering deploying commercial energy storage batteries to improve energy efficiency and achieve sustainability goals. YouthPOWER 114kWh 409V 280AH commercial solar battery storage is an indoor lithium-ion battery storage system designed specifically for commercial and industrial purposes, equipped with simple brackets. The main functions of this commercial battery storage systems include energy storage, load smoothing, backup power, and regulation of power market demand. They have a wide range of applications in the energy industry, including industrial electricity usage, commercial buildings, micro-grid systems, and grid regulation, providing users with flexibility and reliability in energy management.

Send Inquiry

Product Description

Product model	YP-HV 409050	YP-HV 409080	YP-HV 409105	YP-HV 409160	YP-HV 409230	YP-HV 409280
System demo
Battery module
Module model	51.2V50Ah	51.2V80Ah	51.2V105Ah	51.2V160Ah	51.2V230Ah	51.2V280Ah
Serial/Parallel	16S1P	16S1P	16S1P	16S2P	16S1P	16S1P
Module dimension	482.6416.2132.5MM	482.6416.2177MM	482.6416.2177MM	482.6554221.5MM	482.6614265.9MM	482.6754265.9MM
Module weight	30KG	41.5KG	46.5KG	72KG	90KG	114KG
Number of modules	8PCS	8PCS	8PCS	8PCS	8PCS	8PCS
Battery type	LiFePO4	LiFePO4	LiFePO4	LiFePO4	LiFePO4	LiFePO4
System parameters
Rated voltage	409.6V
Working voltage range	294.4-467.2V
Charge voltage	435.2-441.6V
Floating charge voltage	428.8-435.2V
Rated capacity	50Ah	80Ah	105Ah	160Ah	230Ah	280Ah
Energy	20.48KWh	32.76KWh	43KWh	65.53KWh	94.2KWh	114.68KWh
Rated charge current	25A	40A	50A	80A	115A	140A
Peak charge current	50A	80A	105A	160A	230A	280A
Rated discharge current	50A	80A	105A	160A	230A	280A
Peak discharge current	100A	160A	210A	320A	460A	460A
Charge temperature	0-55℃
Discharge temperature	-10-55℃
Optimum temperature	15-25℃
Cooling method	Natural cooling
Relative humidity	5%-95%
Altitude	≤2000M
Cycle Life	≥3500 times @80%DOD, 0.5C/0.5C, 25℃
Communication interfaces	CAN2.0/RS485/Dry
Protection	Over temperature, over current, over voltage, insulation and other multiple protection
Display	LCD
Design lifetime	≥10 years
Certification	UN38.3/UL1973/IEC62619

The shipping packaging of the High 114kWh 409V 280AH demonstrates a high level of professionalism and efficiency. It takes into consideration the weight and size of the batteries, utilizing durable materials and precise linings to ensure safe transportation and handling without damage.

Each battery module is carefully packaged and sealed to protect against external environmental factors, vibration, and impact damage. The professional packaging also includes detailed identification and documentation, clearly stating operating and safety instructions for customer safety. These measures result in reduced transportation losses, lower maintenance costs, improved customer satisfaction, and enhanced product reliability.

Our other solar battery series: High voltage batteries | All In One ESS

Single Battery Module	14.336kWh - 51.2V 280Ah LiFePO4 rack battery
One Single Commercial Battery System	114.688kWh - 409.6V 280Ah (8 units in series)

5.1 PC / safety UN Box
12 Piece / Pallet
20' container: Total about 140 units
40' container: Total about 250 units

Key Features & Protection Features

Perfect BMS protection function and control system: over current, over voltage, insulation, and multiple protection designs.

Modular design, standardized production, strong commonality, easy installation, operation, and maintenance.

Using lithium iron phosphate cell: low internal resistance, high rate, high safety, long life. High consistency of internal resistance, voltage, and capacity.

The cycle times can reach more than 3500 times, the service life is more than 10 years, and the comprehensive operation cost is low.

Intelligent system, low loss, high conversion efficiency, strong stability, and reliable operation.

Visual LCD display allows you to set operating parameters, view real-time data and operating status, and accurately diagnose operating faults.

Support fast charging and discharging.

Supports communication protocols such as CAN2.0 and RS485, which can be used in various scenarios.

Applications & Implementation

Commercial batteries can be widely used in the following applications:

Micro-grid systems
Grid regulation
Industrial electricity usage
Commercial buildings
Commercial UPS battery backup
Hotel backup power supply

Commercial solar batteries can be installed in various locations, including factories, commercial buildings, large retail stores, and critical nodes on the grid. They are usually installed on the ground or walls near the building's interior or exterior, and are monitored and operated through a smart control system.

Customize your high voltage battery energy storage system (BESS)! We offer flexible OEM/ODM services—tailor battery capacity, design, and branding to fit your projects. Fast turnaround, expert support, and scalable solutions for commercial and industrial energy storage.

Residential & commercial lithium battery storage utilizes advanced lithium iron phosphate technology to deliver exceptional performance and superior safety. Each LiFePO4 battery storage unit has received certifications from various international organizations, including MSDS, UN38.3, UL1973, CB62619, and CE-EMC. These certifications verify that our products meet the highest quality and reliability standards globally. In addition to delivering outstanding performance, our batteries are compatible with a wide range of inverter brands available on the market, providing customers with greater choice and flexibility. We remain dedicated to providing reliable and efficient energy solutions for both residential and commercial applications, catering to the diverse needs and expectations of our customers.

Frequently Asked Questions (FAQ)

What safety certifications do these battery systems hold?

Our residential and commercial lithium battery storage systems meet rigorous global safety guidelines and have received certifications from international organizations, including MSDS, UN38.3, UL1973, CB62619, and CE-EMC.

What type of cell technology is used, and what is its cycle life?

We use high-performance Lithium Iron Phosphate (LiFePO4) cells. They offer high safety and low internal resistance. The cycle life reaches more than 3,500 times at 80% DOD (0.5C/0.5C at 25°C), with a designed service lifetime of over 10 years.

What communication protocols and interfaces are supported?

The systems support common industrial communication interfaces, including CAN2.0, RS485, and Dry contacts, allowing seamless integration with various smart monitoring systems and inverters.

Can I customize the battery capacity and design?

Yes. We provide comprehensive and flexible OEM/ODM services. We can tailor the battery capacity, exterior system design, and branding to perfectly align with your specific commercial or industrial project requirements.

What are the primary applications of these high-voltage batteries?

Our commercial batteries are ideal for micro-grid systems, grid regulation, industrial electricity usage, commercial buildings, commercial UPS backups, and backup power supplies for hotels.

What built-in protection features does the BMS provide?

The integrated Battery Management System (BMS) features multiple safety designs to protect the system against over-current, over-voltage, insulation failure, and over-temperature occurrences.
