Buy 5kWh 51.2V 48V 100Ah Lithium Ion Battery Factory, Company

1 / 5

Buy 5kWh 51.2V 48V 100Ah Lithium Ion Battery Factory, Company

YouthPOWER 5kWh lithium ion battery is a high-performance residential solar solution designed for efficient and reliable power backup. Built with advanced Lithium Iron Phosphate (LiFePO4) technology, it offers high energy density and long lifespan, with up to 6000 charge cycles, ensuring low maintenance costs over the long term.

It offers two battery options:

1. 4.8kWh 48V lithium ion battery 100Ah

2. 51.2V 100 Ah 5.12kWh lithium battery

This 5kWh lithium battery features 100Ah capacity and 48V/51.2V voltage, providing stable home power supply for you. It is perfect for use with solar battery backup systems, helping you achieve sustainable and eco-friendly self-consumption. Equipped with an intelligent Battery Management System (BMS), it protects this 5.12 KWH LFP ESS from overcharging, over-discharging, and overcurrent, ensuring safe and reliable operation.

Item：YP48100-4.8KW V1 / YP51100-5.12KW V1

Send Inquiry

Product Description

Model No.	YP48100-4.8KW V1
Model No.	YP51100-5.12KW V1
Voltage	48V/51.2V
Combination	15S2P/16S2P
Capacity	100AH
Energy	4.8KWH/5.12KWH
Weight	58kg
Chemistry	Lithium Ferro Phosphate (LiFePO4) Safest Lithium ion, No fire risk
BMS	Built-in Battery Management System
Connectors	Waterproof connector

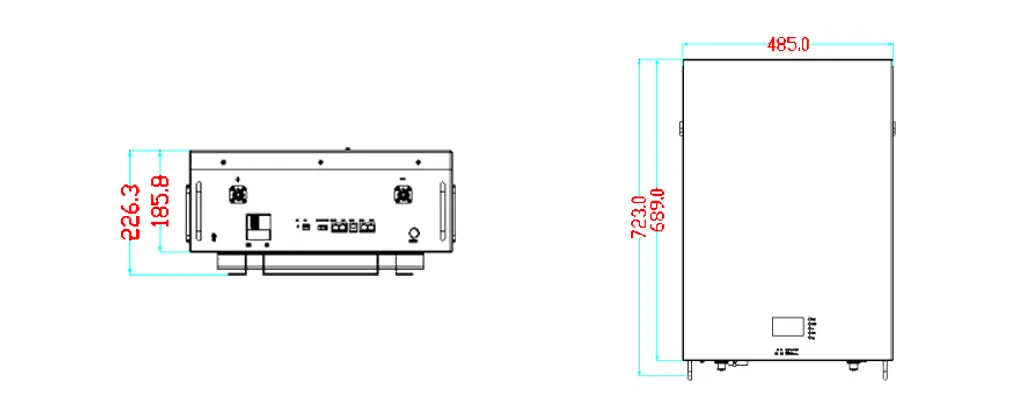

Dimension	680485180mm
Cycles (80% DOD)	6000 cycles
Depth of Discharge	Up to 100%
Life Time	10 years
Standard Charge	20A
Storage Discharge	20A
Maximum Continuous Charge	100A
Maximum Continuous Discharge	100A
Operation Temperature	Charge: 0-45℃, Discharge: -20~55 ℃
Storage Temperature	Keep at -20 to 65 ℃
Protection standard	Ip21
Cut Off Voltage	42V
Max. Charging Voltage	54V
Memory Effect	None
Maintenance	Maintenance free
Compatibility	Compatible with all standard off-grid inverters and charge controllers. Battery to inverter output sizing keep 2:1 ratio.
Warranty Period	10 Years
Remarks	The 48V wall battery BMS must be wired in parallel only, wiring in series will void the warranty. Allow max. 14 units in parallel to expand more capacity.

The 5kWh 100Ah LiFePO4 battery is the perfect solar energy storage solution for residential and small commercial applications.

Designed to efficiently store solar power, it helps homeowners and businesses reduce energy costs, increase energy independence, and ensure a reliable power supply.
With a compact, space-saving, wall-mounted design, this 51.2V 48V lithium battery pack integrates seamlessly into solar systems, providing a sustainable and cost-effective energy storage option.

Experience the future of clean energy with our high-performance, certified 48V lithium battery.

Our 48V battery products are securely packed using durable foam and sturdy cartons to ensure protection during transit. Each package is clearly labeled with handling instructions and complies with UN38.3 and MSDS standards for international shipping. With efficient logistics, we offer fast and reliable shipping, ensuring the battery reaches customers quickly and safely. For global delivery, our robust packing and streamlined shipping processes guarantee the product arrives in perfect condition, ready for installation.

Our other solar battery series: Commercial ESS, Inverter Battery

5kWh 100Ah lithium battery offers outstanding performance with a long lifespan and high energy efficiency, making it a reliable choice for residential ESS and small commercial battery storage systems.

It features a compact, space-saving wall-mounted design, easy integration with existing setups, and advanced safety features certified by UL, CE, and IEC standards.

With fast charging capabilities and minimal maintenance, this 51.2V 48V 100Ah LiFePO4 battery ensures consistent power storage, helping users reduce energy costs and increase energy independence. A sustainable, cost-effective battery solar solution for your energy needs.

The powerwall 5kWh is engineered with safety and performance in mind, meeting global standards for quality and reliability. It holds key international certifications, including UL 1973, IEC 62619, and CE, ensuring compliance with rigorous safety and environmental requirements. Additionally, it is certified for UN38.3, demonstrating its safety for transportation, and comes with an MSDS (Material Safety Data Sheet) for safe handling and storage.

This high-performance home solar solution is designed to deliver consistent power while minimizing risks, making it ideal for residential and small commercial applications. Whether you are looking to improve energy independence or reduce energy costs, our certified 5.12kWh 4.8 kWh lithium ion battery offers peace of mind with its proven safety features.

Choose our 51.2 Volt 48 Volt lithium battery for a secure, sustainable, and efficient energy solution, trusted by industry professionals worldwide.

Packing Details:

• 1 unit / safety UN Box

• 20' container : Total about 128 units

• 6 units / Pallet

• 40' container : Total about 252 units

Backup Protection

UL1973, IEC62619, CE, MSDS, UN38.3

Plug In And Play

Plug in batteries then working, easy to install and set up.

Long Life And Safety

6000 cycles with 80% DOD, high-quality LiFePO4 battery cells.

Intelligent

With an independent smart BMS system, it effectively manages power output. Stores energy, detects outages and automatically becomes energy source.

Compatibility

Compatible with most of the available inverters.

Safety Certifications

Meets international safety benchmarks for clean, reliable power storage.

Frequently Asked Questions

What is the lifespan and cycle rating of this LiFePO4 battery?

The battery offers an outstanding life of 6000 cycles at 80% Depth of Discharge (DOD) using high-quality Lithium Ferro Phosphate cells, with a total design life span of 10 years.

Can I wire these batteries in series?

No, these 48V wall batteries must be wired in parallel only. Wiring them in series will void the warranty. Up to 14 units can be connected in parallel to expand capacity.

What solar inverters are compatible with this battery?

This battery is compatible with most standard off-grid inverters and charge controllers on the market. It is recommended to keep a 2:1 ratio for battery-to-inverter output sizing.

What safety and shipping certifications does the battery hold?

The battery holds major international safety certifications including UL 1973, IEC 62619, and CE. It is also UN38.3 certified and includes an MSDS for compliant international shipping.

What are the recommended operating temperatures?

The operational temperature for charging is 0 to 45°C, and for discharging is -20 to 55°C. Storage should be maintained within a temperature range of -20 to 65°C.

Is the battery management system (BMS) built-in?

Yes, the battery has a built-in independent smart Battery Management System (BMS) that effectively manages power output, protects the cells, and transitions automatically during outages.
