YouthPOWER
1 / 5
| Model | YP SB51100 | YP SB51200 | YP SB51300 | YP SB51400 |
|---|---|---|---|---|
| Battery | ||||
| Normal Voltage | 51.2V | |||
| Typical Capacity | 100AH | 200AH | 300AH | 400AH |
| Energy | 5KWH | 10KWH | 15KWH | 20KWH |
| Cycle Life | Over 5000 cycles @ 80% DOD, 0.5C, Over 4000 cycles @95% DOD, 0.5C | |||
| Design Life | 10+ years design life | |||
| Charge Cut-Off Voltage | 57V | |||
| Discharge Cut-Off Voltage | 43.2V | |||
| Maximum Continuous Charge Current | 100A | |||
| Maximum Continuous Discharge Current | 100A | |||
| Charge Temperature Range | 0-60 Degree | |||
| Discharge Temperature Range | -20-60 Degree | |||
| System Parameters | ||||
| Dimension : | 745*415*590mm | 930*415*590mm | 1120*415*590mm | 1300*415*590mm |
| Net Weight ( KG ) | 45kg | 96kg | 142kg | 180kg |
| Protocol ( Optional ) | RS232-PC, RS485(B)-PC, RS485 (A)-Inverter, CANBUS-Inverter | |||
| Certification | IEC62619, UN38.3, MSDS, UL1642 | |||
Our 51.2V 5KWh 100Ah lithium battery is meticulously tested for quality and performance to ensure reliability in your energy storage needs. We prioritize safe packaging to protect the battery during transit, minimizing the risk of damage. Our streamlined shipping process guarantees prompt delivery, so you can quickly harness the benefits of lithium battery storage. Experience peace of mind with our high-quality products and efficient service, designed to meet your renewable energy goals.

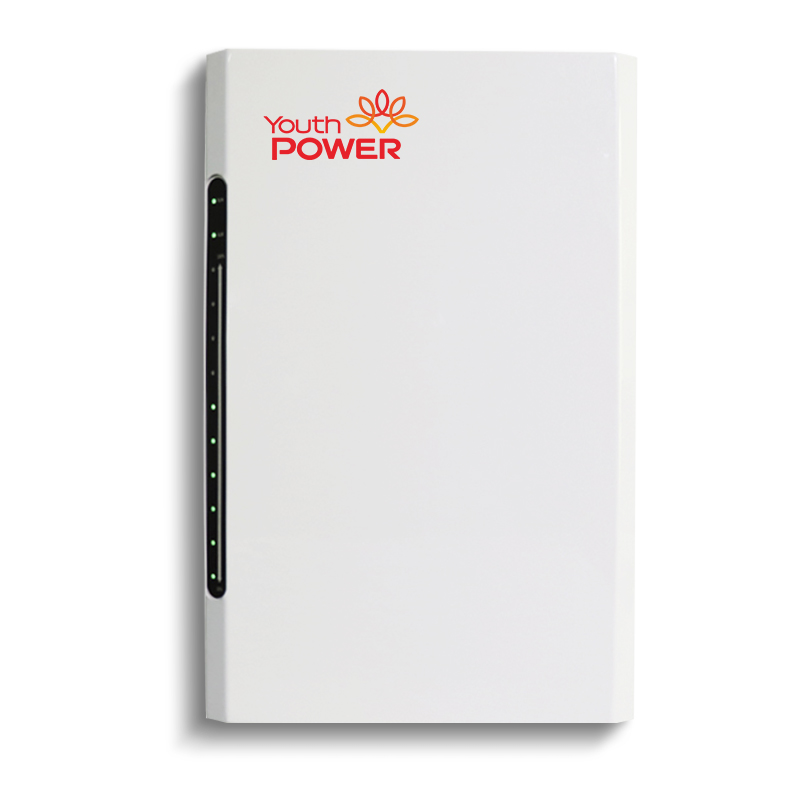

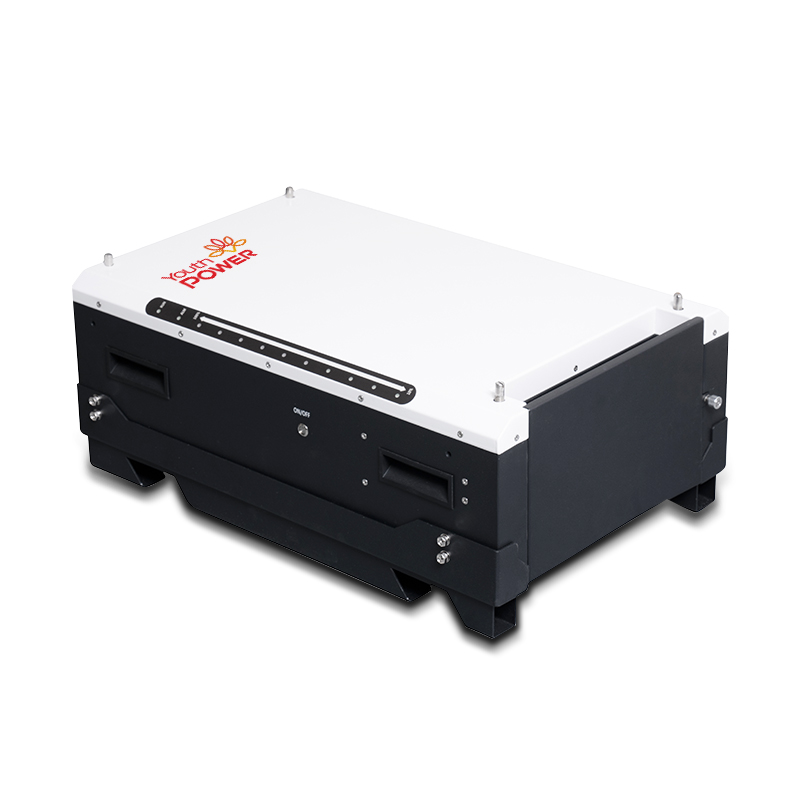

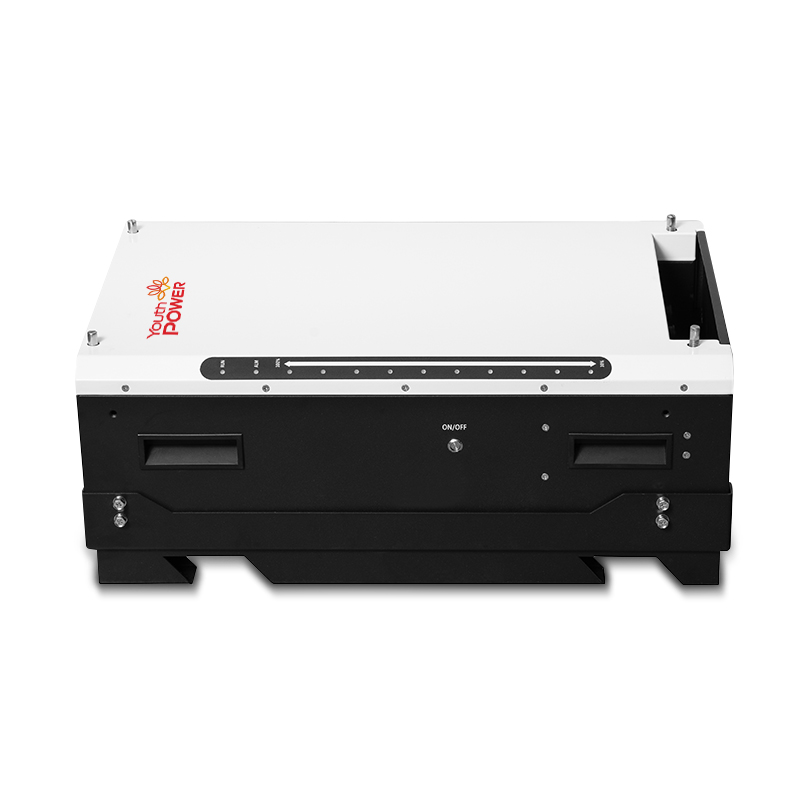

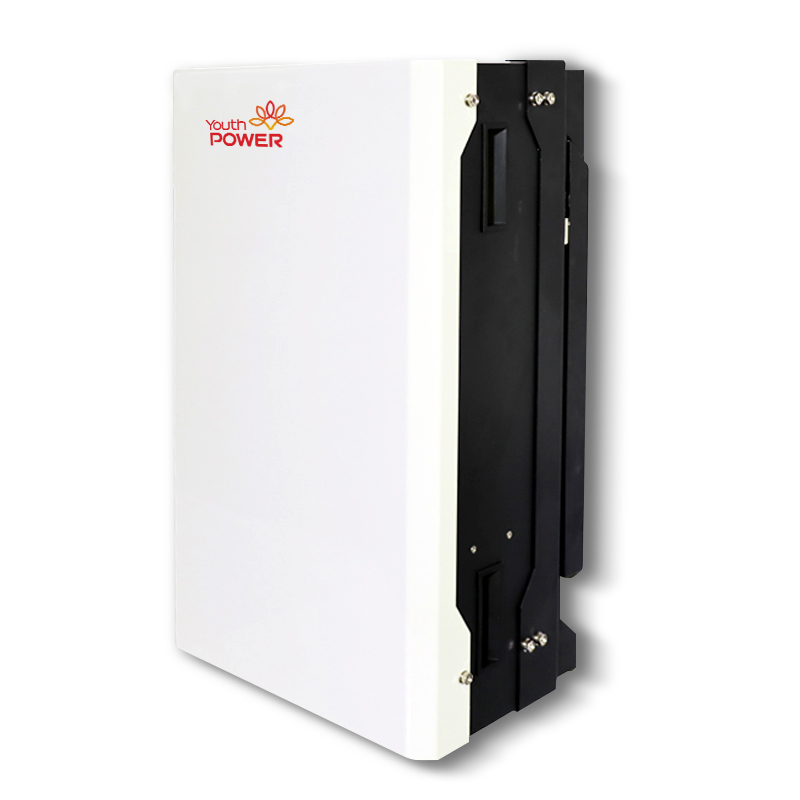

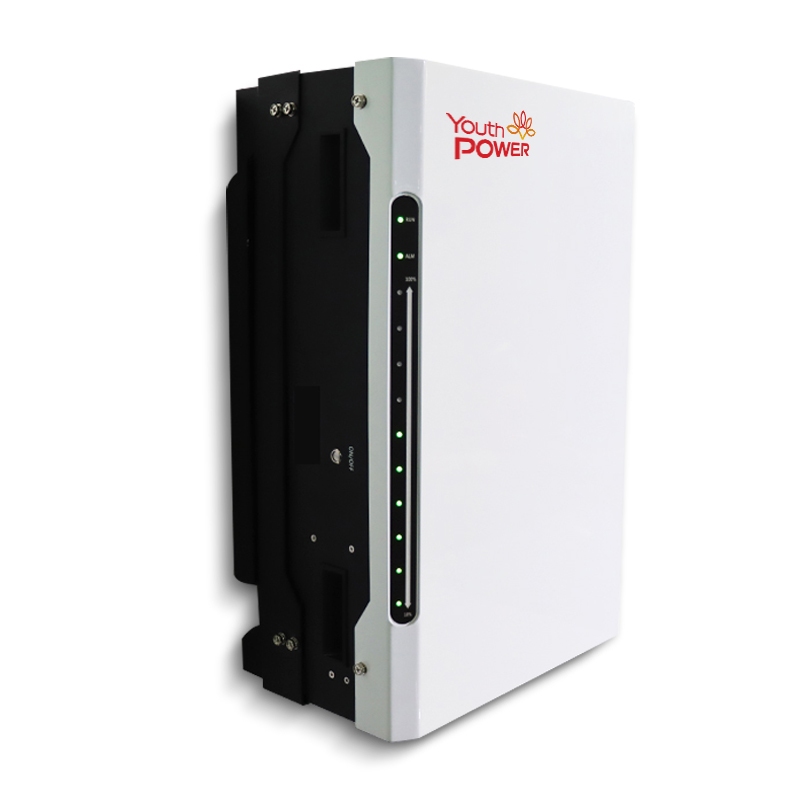

Power storage brick is a battery that stores energy, detects outages and automatically becomes your home’s energy source when the grid goes down. Unlike gasoline generators, Power storage brick keeps your lights on and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your appliances running for days. Power storage brick reduces your reliance on the grid by storing your solar energy for Power storage brick is a battery that stores energy, detects outages and automatically becomes your home’s energy source when the grid goes down. Available both wall mounted design and brick ground laying design! Suggest parallel connection / brick on grid with 6 units max for 30KWH system 51.2V.
Our lithium battery storage is certified by international organizations, including MSDS, UN38.3, UL 1973, CB 62619, and CE-EMC. Our 51.2V 5KWh 100Ah lithium battery ensures exceptional quality and safety in battery storage solutions. Each unit undergoes rigorous testing to meet strict industry standards, guaranteeing reliability.
Committed to eco-friendly practices, our lithium batteries provide efficient energy storage while supporting sustainable energy goals. Choose our lithium batteries for a safe, reliable, and environmentally responsible energy solution that meets your renewable energy needs and minimizes your carbon footprint.
Supports parallel connections for up to 6 units, creating a 30KWh system at 51.2V.
Enjoy an impressive cycle and design life of 15-20 years.
Modular design allows easy capacity expansion as power needs grow.
Proprietary architecture with an integrated BMS requires no additional programming or wiring.
Operates at 98% efficiency for over 5,000 cycles.
Can be rack or wall-mounted in unused and compact spaces.
Offers up to 100% depth of discharge (DOD).
Made from non-toxic, recyclable materials for safe end-of-life recycling.
The battery series provides a design life of over 10 years (with standard use cases reaching 15-20 years). It operates for over 5,000 cycles at 80% Depth of Discharge (DOD) under 0.5C conditions, and over 4,000 cycles at 95% DOD under 0.5C.
You can connect up to 6 units in parallel to scale up your storage capacity, creating a system up to 30KWh at a standard 51.2V operating voltage.
The batteries undergo testing and hold certifications from leading global safety standards, including MSDS, UN38.3, UL 1973, CB 62619, and CE-EMC, ensuring premium quality and regulatory safety.
The charging process is designed to operate safely between 0°C and 60°C. For discharging, the battery operates in extreme climates ranging from -20°C to 60°C.
The system supports optional integration with several common communication protocols: RS232-PC, RS485(B)-PC, RS485(A)-Inverter, and CANBUS-Inverter.
The storage brick monitors grid connectivity automatically. Once a grid failure or outage is detected, the battery instantly switches to become the home's backup energy source without fuel or noise.
