Buy YP BOX HV10KW-25KW Factory, Factories

YouthPOWER high voltage lithium batteries are more efficient at converting stored energy into usable energy, resulting in improved overall performance. They also have a faster charging time, allowing for quick and convenient recharging.

Send Inquiry

Product Description

Advanced Lithium Iron Phosphate Technology

YouthPOWER lithium battery storage utilizes advanced lithium iron phosphate technology to deliver exceptional performance and superior safety. Each LiFePO4 battery storage unit has received various international certifications verifying that our products meet the highest quality and reliability standards globally.

MSDS UN 38.3 UL 1973 CB 62619 CE-EMC

In addition to delivering outstanding performance, our batteries are compatible with a wide range of inverter brands available on the market, providing customers with greater choice and flexibility. We remain dedicated to providing reliable and efficient energy solutions for both residential and commercial applications, catering to the diverse needs and expectations of our customers.

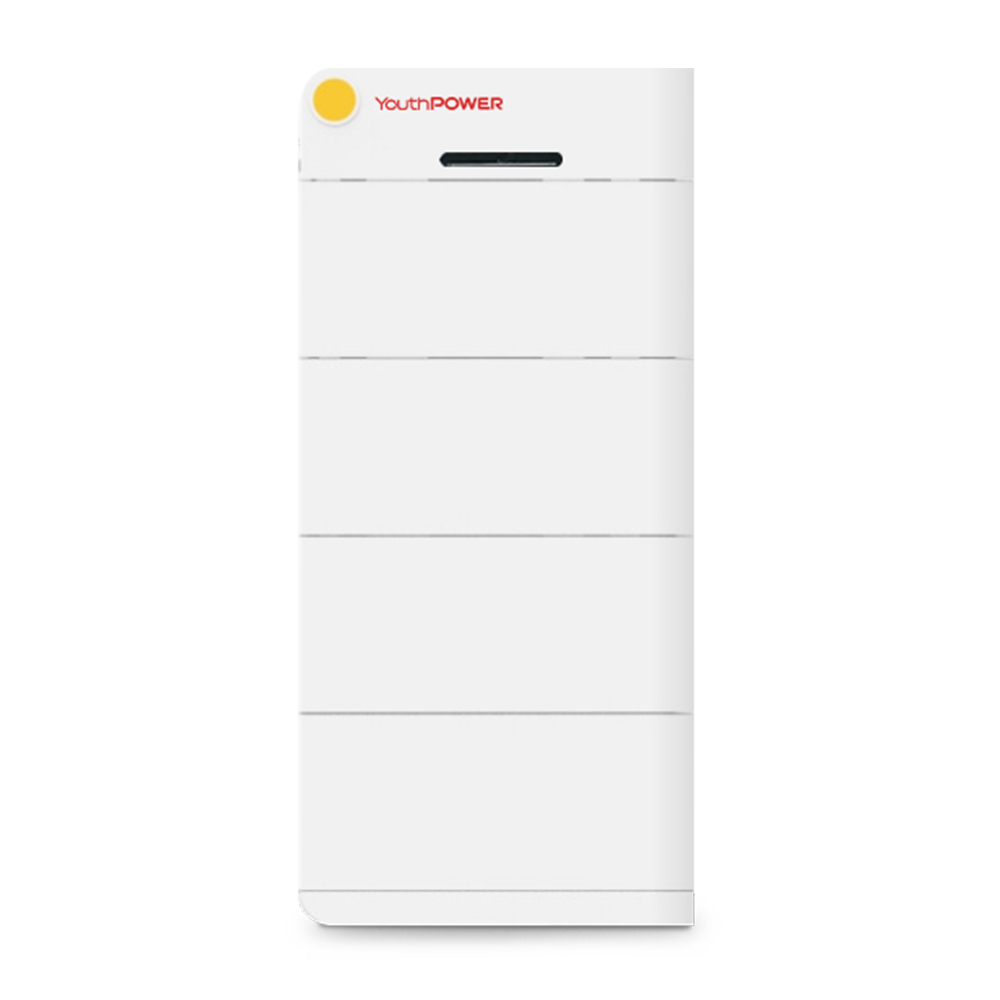

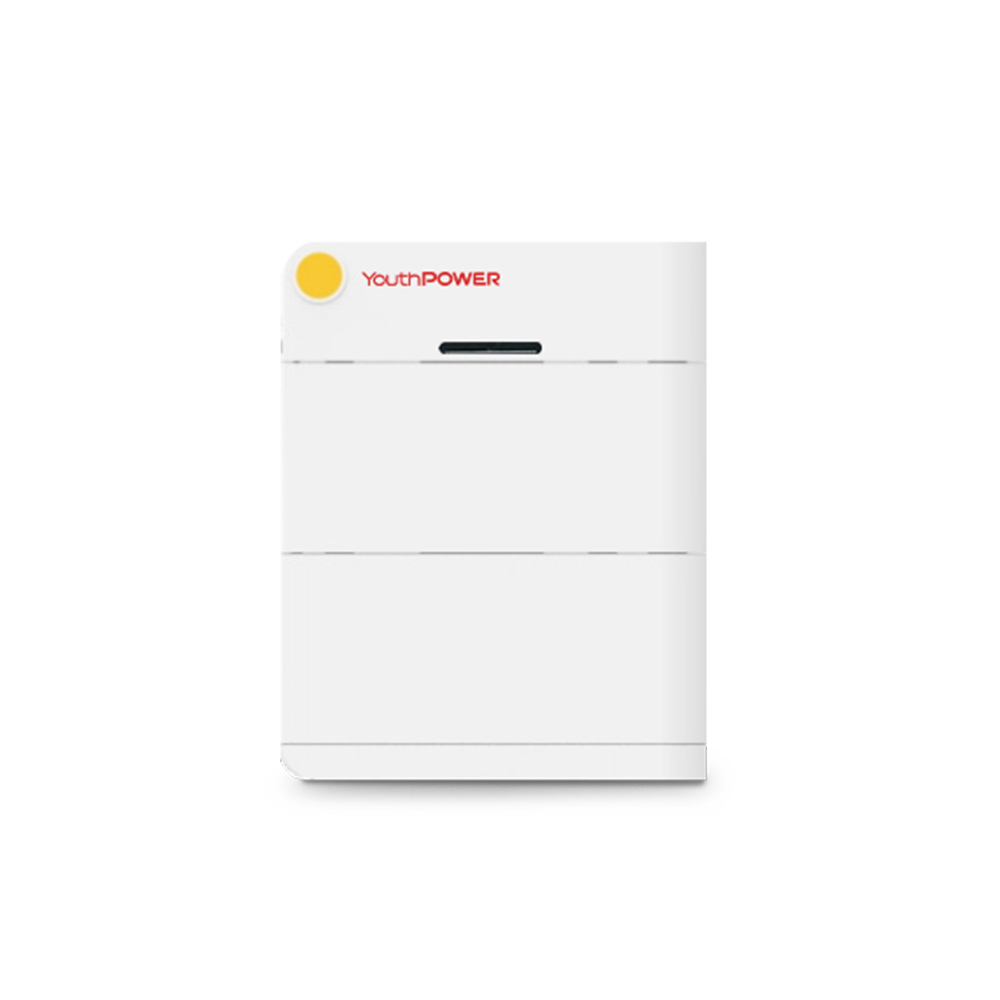

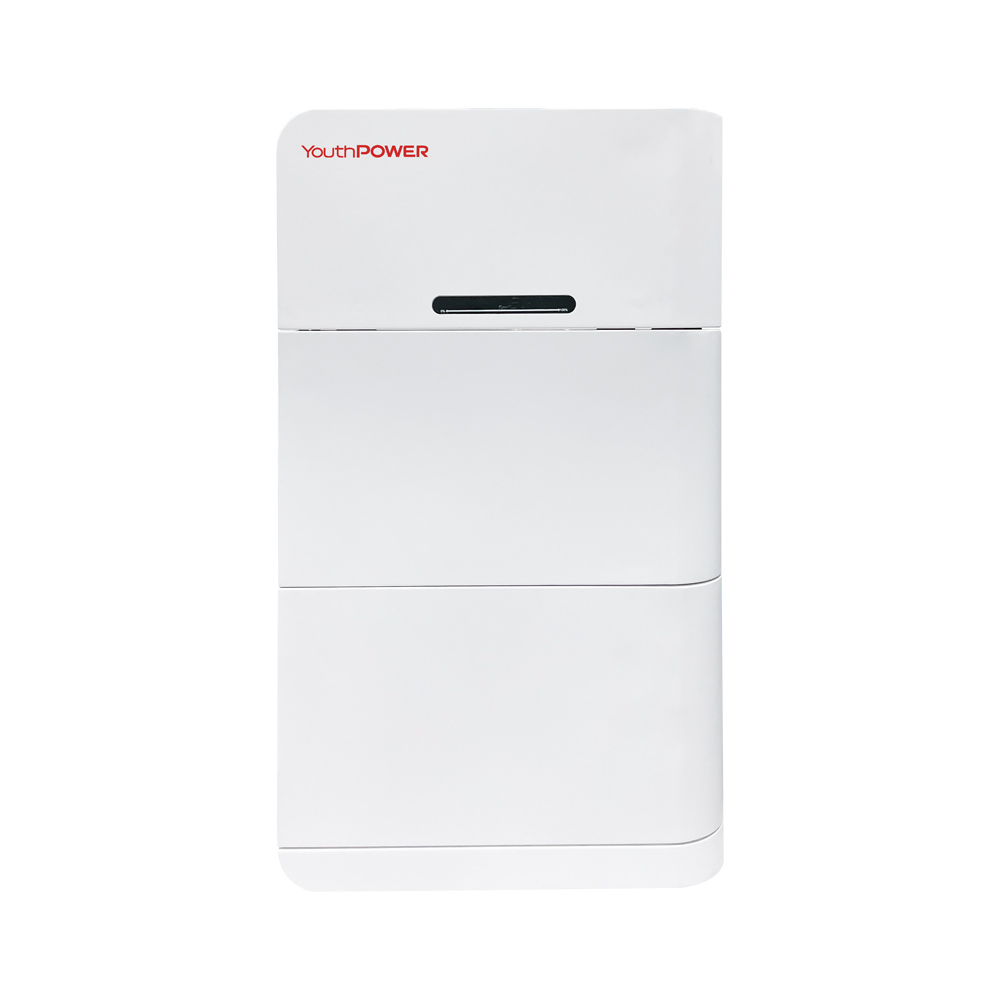

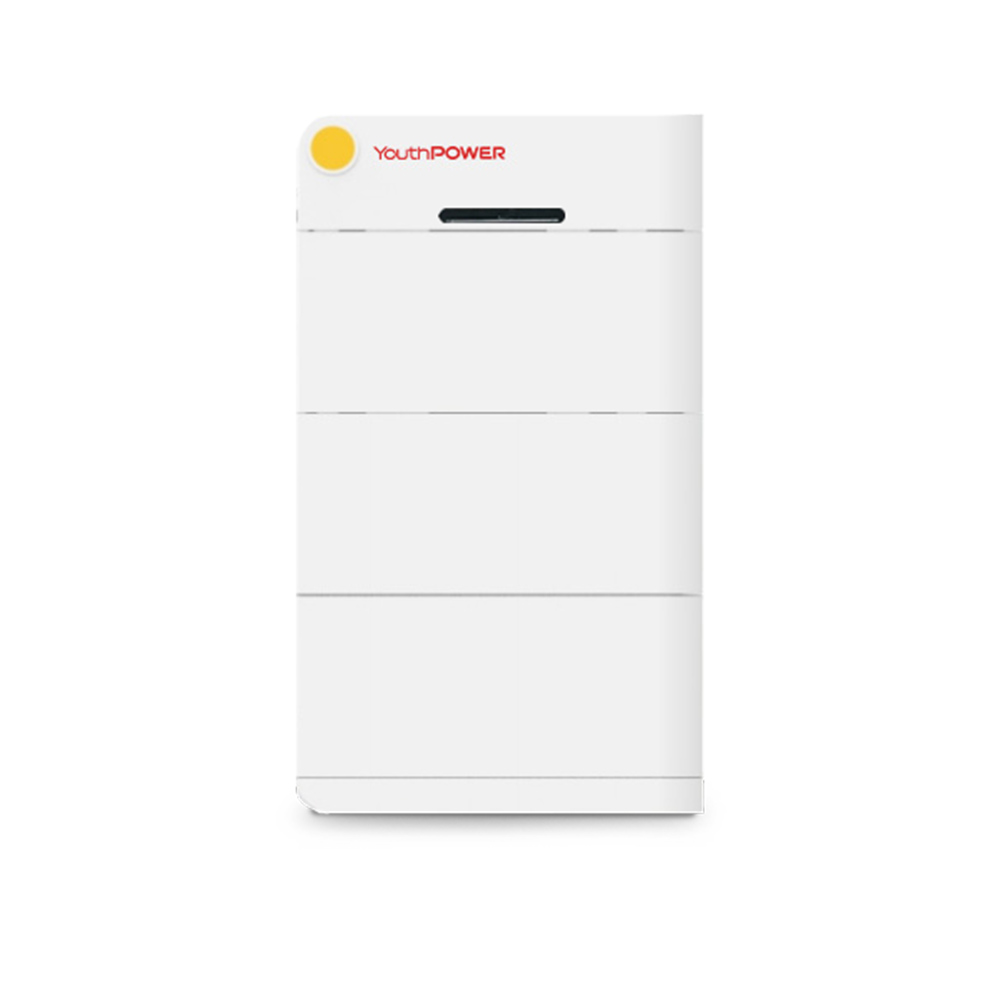

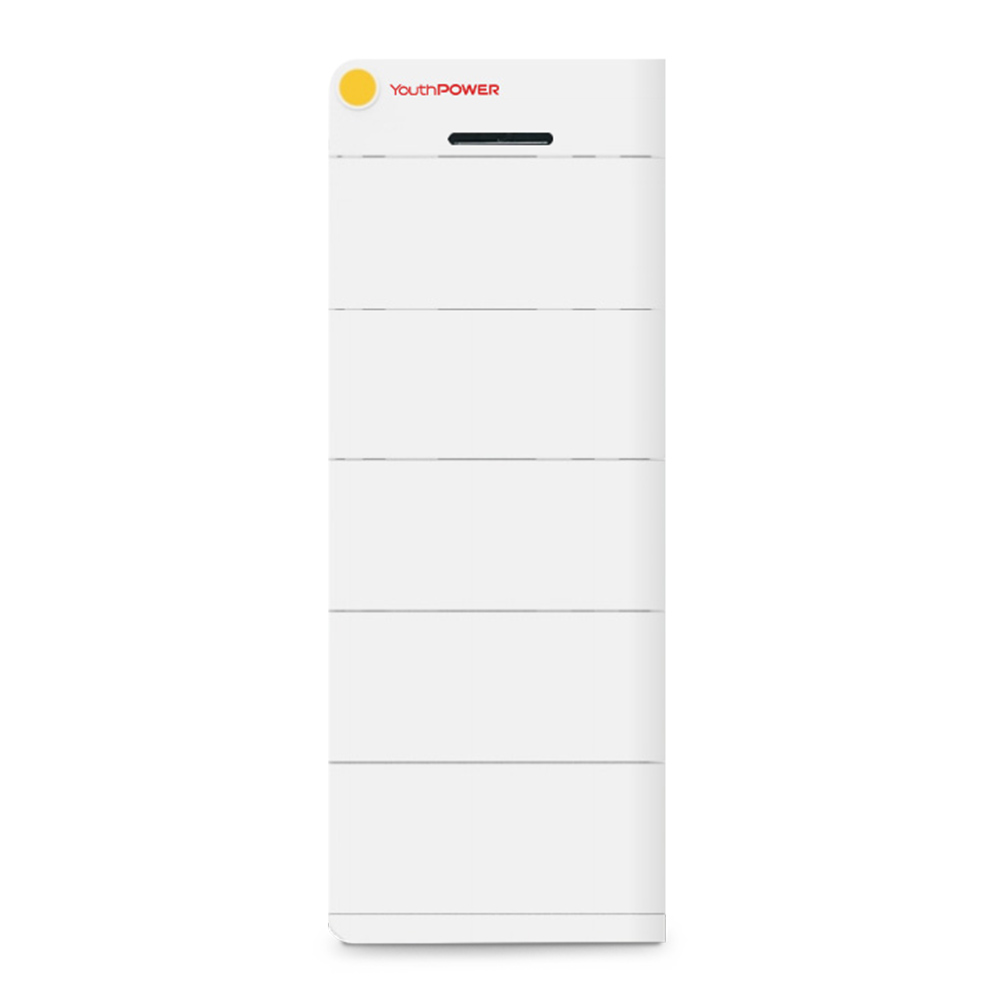

HV Stackable Energy Storage System

YouthPOWER HV stackable energy storage system, with a capacity of 10k-25kWh, consists of lithium battery storage and an HV control box. To ensure the impeccable condition of each HV battery module and HV control box during transit, YouthPOWER strictly adheres to shipping packaging standards. Each battery is meticulously packaged with multiple layers of protection to effectively safeguard against potential physical damage. Our efficient logistics system guarantees prompt delivery and timely receipt of your order.

Our other solar battery series: High voltage batteries, All In One ESS.

Efficient High Voltage Conversion

YP BOX HV10KW-25KW, from 10KWH 204V to 25kwh 512V, is more efficient at converting stored energy into usable energy, resulting in improved overall performance. It features a faster charging time, allowing for quick and convenient recharging for most 3P inverters. YouthPOWER high voltage solar lithium battery is an incredible product that has the potential to change the way we use energy.

Transit Standards & Pack Quantities

1 unit / safety UN Box
9 units / Pallet
20' container: Total about 200 units (66 sets for a 10kwh battery module)
40' container: Total about 432 units (114 sets for a 10kWh battery module)

Transit Protection & Packaging Showcase

Technical Specifications

Model	YP BOX HV10KW	YP BOX HV15KW	YP BOX HV20KW	YP BOX HV25KW
Nominal Voltage	204.8V (64 series)	307.2V (96 series)	409.6V (128 series)	512V (160 series)
Capacity	50Ah
Energy	10KWh	15KWh	20KWh	25KWh
Internal Resistance	≤80mΩ	≤100mΩ	≤120mΩ	≤150mΩ
Cycle Life	≥5000 cycles @80% DOD, 25℃, 0.5C / ≥4000 cycles @80% DOD, 40℃, 0.5C
Design Life	≥10 years
Charge Cut-off Voltage	228V±2V	340V±2V	450V±2V	560V±2V
Max. Continuous Work Current	100A
Discharge Cut-off Voltage	180V±2V	270V±2V	350V±2V	440V±2V
Charge Temperature	0℃~60℃
Discharge Temperature	﹣20℃~60℃
Storage Temperature	﹣40℃~55℃ @ 60%±25% relative humidity
Dimensions	630185930 mm	6301851265 mm	6301851600 mm	6301851935 mm
Weight	Approx: 130kg	Approx: 180kg	Approx: 230kg	Approx: 280kg
Protocol (optional)	RS232-PC, RS485(B)-PC, RS485(A)-Inverter, Canbus-Inverter
Certification	UN38.3, MSDS, UL1973 (Cell), IEC62619 (Cell)

Battery Module

The YouthPOWER HV stackable energy storage system, with a capacity of 204V 10kWh - 512V 25kWh, is a user-friendly and dependable solution for both residential and commercial energy storage needs. Its ease of installation and versatility make it adaptable to your changing energy needs.

YouthPOWER HV stackable energy storage systems not only make installation easier, but also provide an intuitive interface for monitoring and controlling energy usage. By selecting these energy storage systems, you will have increased energy availability, flexibility, and control while minimizing costs. Whether you are upgrading an existing system or installing a new one, our energy storage systems are an excellent choice.

1. Support various communication options with various inverters.
2. Offering coverage for 10-25KWh for both home and business applications.
3. Safe and reliable power supply.
4. Support parallel connections and expansion.
5. Simple and easy to install.

Main Control Box

Frequently Asked Questions (FAQ)

QWhat is the cost of a 10 kwh battery storage?

The cost of a 10 kwh battery storage depends on the type of battery and the amount of energy it can store. The cost also varies, depending on where you purchase it. There are many different types of lithium-ion batteries available on the market today, including: Lithium cobalt oxide (LiCoO2) – This is the most common type of lithium-ion battery used in consumer electronics.

QHow many solar panels do I need for a 5kw solar inverter?

The amount of solar panels you need depends on how much electricity you want to generate and how much you use. A 5kW solar inverter, for example, can’t power all of your lights and appliances at the same time because it would be drawing more power than it can provide.

QHow much power does a 5kw battery system produce per day?

A 5kW solar system for home is enough to power the average household in America. The average home uses 10,000 kWh of electricity per year. To produce that much power with a 5kW system, you would need to install about 5000 watts of solar panels.

QWhat international safety certifications do the batteries hold?

Each lithium battery storage unit has successfully received key international certifications, including MSDS, UN 38.3, UL 1973 (Cell), CB 62619 (Cell), and CE-EMC, ensuring they adhere to rigorous global quality and safety guidelines.

QWhat capacity levels are supported by the stackable system?

The YouthPOWER high voltage stackable energy storage configuration supports capacity options from 10kWh to 25kWh (including YP BOX HV10KW, HV15KW, HV20KW, and HV25KW) with nominal voltages spanning from 204.8V up to 512V.

QWhat is the expected life cycle and warranty design life of the system?

The system features a design life of 10 years or more. Its cycle life is rated at ≥5000 cycles at 80% DOD (25℃, 0.5C) and ≥4000 cycles at 80% DOD (40℃, 0.5C).
