| Product Specification | |
| MODEL | YPESS0510EU |
| Maximum PV Input Power | 6500 W |
| Rated Output Power | 5500 W |
| Maximum Charging Power | 4800 W |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 116 VDC / 150 VDC |
| MPP Voltage Range | 120 VDC ~ 450 VDC |
| Number of MPP Trackers / Maximum Input Current | 2 / 2 x 13 A |
| GRID INPUT | |
| Nominal Output Voltage | 208/220/230/240 VAC |
| Output Voltage Range | 184 - 264.5 VAC* |
| Max. Output Current | 23.9A* |
| AC INPUT | |
| AC Start-up Voltage / Auto Restart Voltage | 120 - 140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 170 -280 VAC |
| Maximum AC Input Current | 40 A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 208/220/230/240 VAC |
| Efficiency (DC to AC) | 93% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48 VDC |
| Maximum Charging Current | 100 A |
| PHYSICAL | |
| Dimension, D X W X H (mm) | 214 x 621 x 500 |
| Net Weight (kgs) | 25 |
| BATTERY MODULE PARAMETERS | |
| Capacity | 10KWH |
| Nominal Voltage | 48VDC |
| Full Charge Voltage(FC) | 52.5V |
| Full Discharge Voltage(FD) | 40.0 V |
| Typical Capacity | 200Ah |
| Max Continuous Discharging Current | 120A |
| Protection | BMS, Breaker |
| Charge Voltage | 52.5 V |
| Charge Current | 30A |
| Standard Charge method | CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current decline to <0.05C |
| Inner Resistance | <20m ohm |
| Dimension, D X W X H (mm) | 214 x 621 x 550 |
| Net Weight (kgs) | 55 |
Versatile Power Storage Solutions
24v solar batteries are a great choice for any solar system that needs to store power. The LiFePO4 battery we carry is an excellent choice for solar systems up to 10kw as it has extremely low self-discharge and less voltage fluctuation than other batteries. Our other solar battery series include High voltage batteries and All In One ESS.
Total about 140 units
Total about 250 units
5.1 PC / safety UN Box
12 Piece / Pallet
Smart Energy Optimization
This energy storage system can provide power to connected loads by utilizing PV power, utility power and battery power and store surplus energy generated from PV solar modules for use when needed. When the sun has set, energy demand is high, or there is a black-out, you can use the energy stored in this system to meet your energy needs at no extra cost. In addition, this energy storage system helps you pursue the goal of energy self-consumption and ultimately energy-independence.Advanced LFP Technology
LFP is the safest, most environmentally friendly chemistry available. They are modular, lightweight and scalable for installations. The batteries provide power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile. Enjoy easy installation and cost advantages with the Home SOLAR WALL BATTERY.
LFP is widely recognized as the safest and most environmentally friendly battery chemistry available. It offers modularity, a lightweight design, low self-discharge rates, minimal voltage fluctuations, and a longer lifecycle compared to traditional battery configurations.

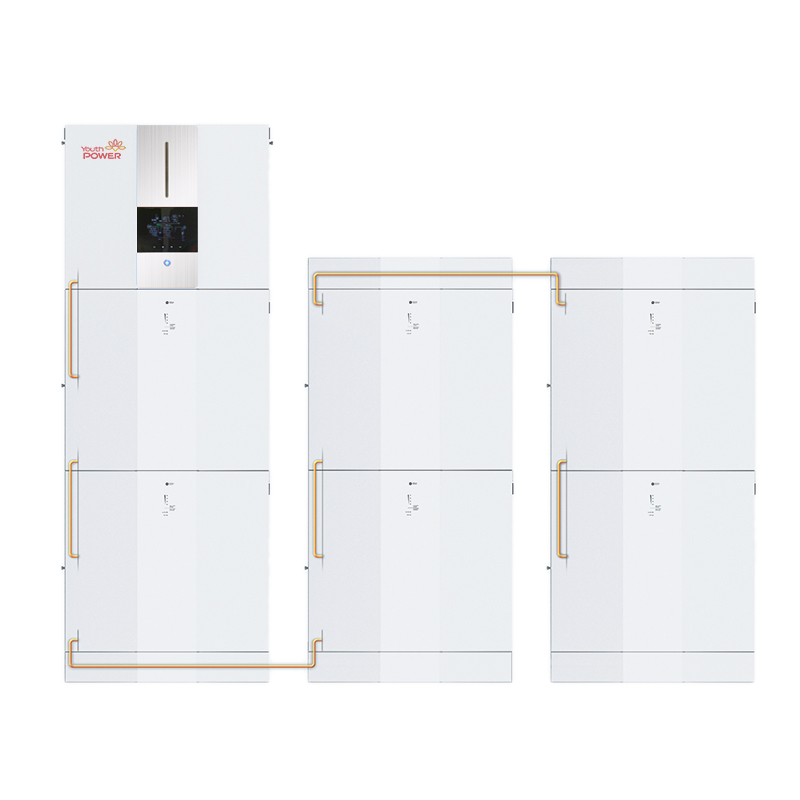

Yes, this system features a modular architecture. This layout allows your energy storage capacity to scale up easily to align with growing power needs over time.
The system supports flexible installations. Depending on space constraints in your home or business, the battery modules can be rack-mounted or wall-mounted in utility or dead space areas.
The proprietary integrated BMS functions automatically to monitor the cells and manage overall operation. It requires no additional programming, custom firmware updates, or complex external wiring to coordinate battery safety and cell balancing.
The system operates at a high 98% efficiency rate and is rated for more than 5,000 discharge cycles, yielding an estimated hardware lifecycle expectancy of 15 to 20 years.
The system is designed to interface with standard single crystalline and poly crystalline PV modules, functioning safely within specified MPP input voltage ranges.
