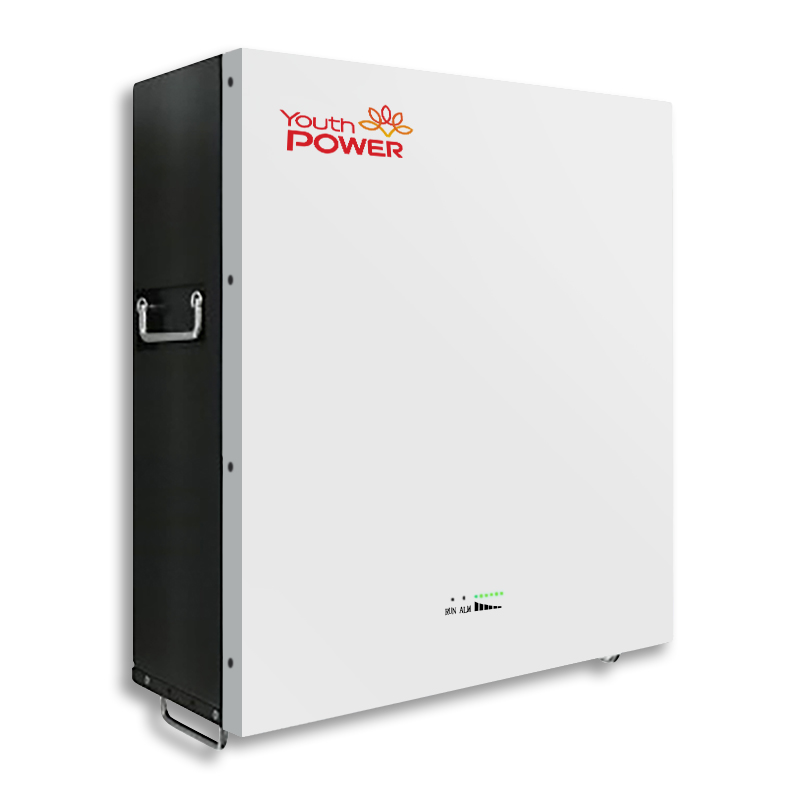

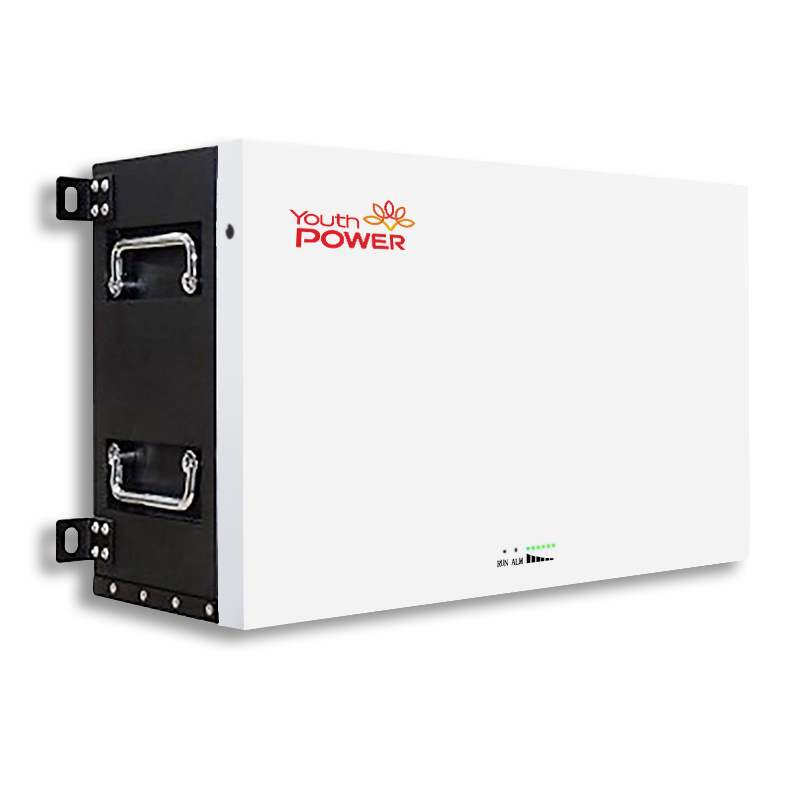

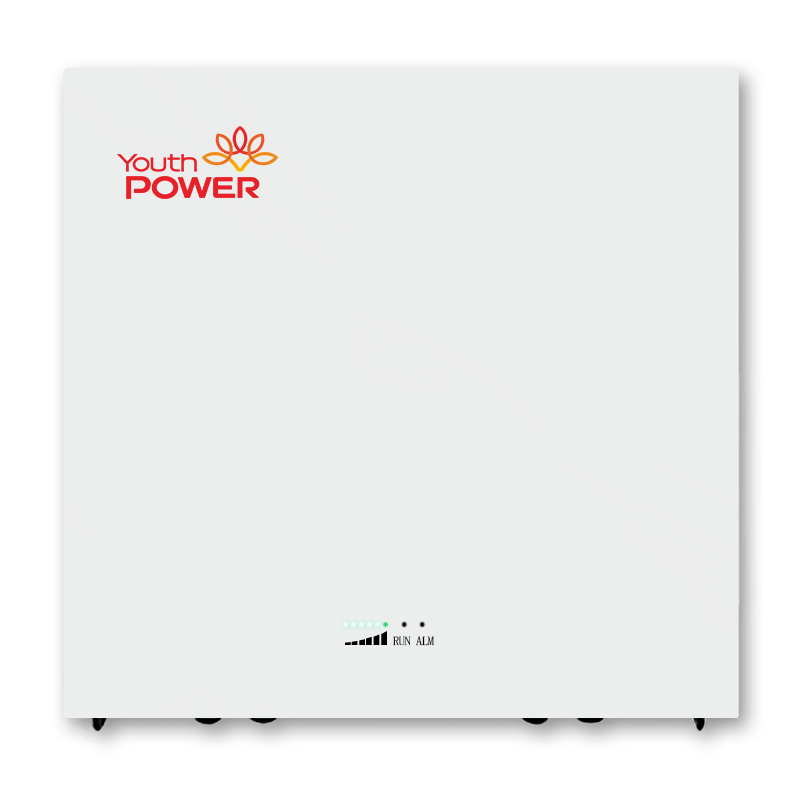

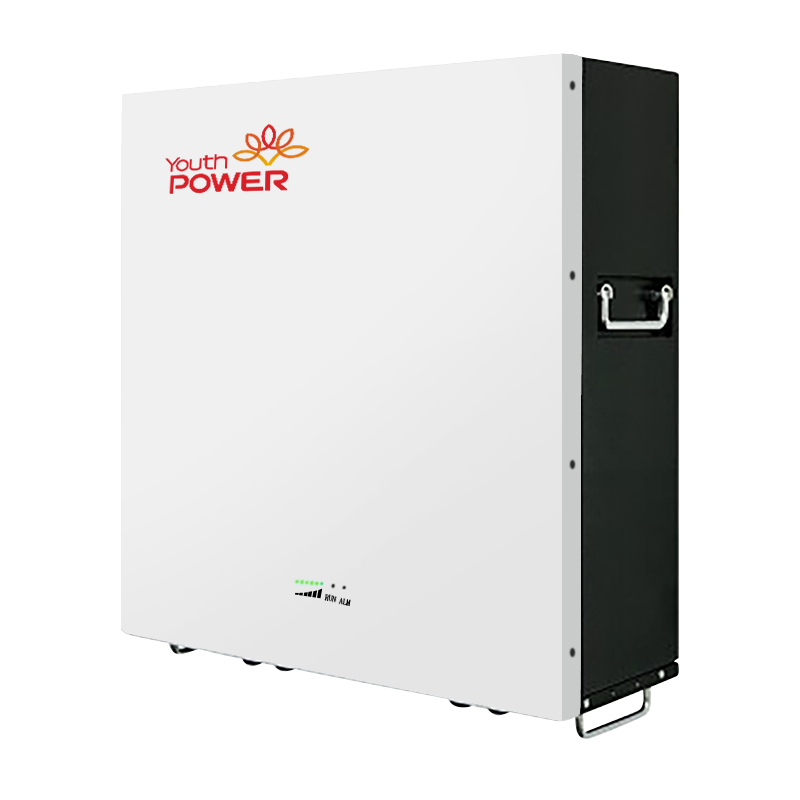

Buy YouthPOWER Mini Wall Battery 2KWH & 5KWH Factory, Factories

Looking for a lightweight, non-toxic, and maintenance-free energy storage solution as your home solar battery?

Youth Power deep-cycle Lithium Ferro Phosphate (LFP) batteries are optimized with proprietary cell architecture, power electronics, BMS and assembly methods.

They are a drop-in replacement for lead acid batteries, and much safer, it is regarded as the best solar battery bank with affordable cost.

Product Description

Battery Technical Specification Outline
Model No. YP4850-2.4KWH YP48100-4.8KWH
Voltage 48V 48V
Combination 15S1P 15S2P
Capacity 50AH 100AH
Energy 2.4KWH 4.8KWH
Weight 28kg 55kg
Chemistry Lithium Ferro Phosphate (Lifepo4) Safest Lithium Ion, No fire risk
BMS Built-in Battery Management System
Connectors Waterproof connector
Dimension 485*295*180mm 510*480*180mm
Cycles (80% DOD) 6000 cycles
Depth of discharge Upto 100%
Life time 10 years
Standard charge 15A 20A
Standard discharge 15A 20A
Maximum continuous charge 50A 100A
Maximum continuous discharge 50A 100A
Operation temperature Charge: 0~45℃, Discharge: -20~55℃
Storage Temperature Keep at -20 to 65℃
Protection standard Ip21
Cut off voltage 54V
Max.charging voltage 40.5V
Memory effect None
Maintenance Maintenance free
Compatibility Compatible with all standard offgrid inverters and charge controllers. Battery to inverter output sizing keep 2:1 ratio.
Warranty Period 5-10 Years
Remarks Battery BMS must be wired in parallel only. Wiring in series will void the warranty.
Battery Detail Image 1 Battery Detail Image 2 Battery Detail Image 3 Battery Detail Image 4

We strictly adhere to shipping packaging standards in order to ensure the impeccable condition of our 48V 50Ah LiFePO4 battery and 48V 100Ah LiFePO4 battery during transit. Each battery is meticulously packaged with multiple layers of protection, effectively safeguarding against any potential physical damage. Our highly efficient logistics system guarantees prompt delivery and timely receipt of your order.

Our other solar battery series:High voltage batteries  All In One ESS.
Alternative Battery Series 1 Alternative Battery Series 2
📦 20' container: Total about 140 units
📦 40' container: Total about 250 units
🛡️ 1 unit / safety UN Box
🏁 12 units / Pallet
Packaging Detail 1 Packaging Detail 2 Packaging Detail 3 Packaging Detail 4 Packaging Detail 5 Packaging Detail 6 Packaging Detail 7 Packaging Detail 8 Packaging Detail 9 Packaging Detail 10 Packaging Detail 11

Looking for a lightweight, non-toxic, and maintenance-free energy storage solution as your home solar battery?

Our deep-cycle Lithium Ferro Phosphate (LFP) batteries are optimized with proprietary cell architecture, power electronics, BMS and assembly methods. They are a drop-in replacement for lead acid batteries, and much safer, it is regarded as the best solar battery bank with affordable cost. LFP is the safest, most environmentally chemistry available. They are modular, lightweight and scalable for installations. The batteries provide power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile. Enjoy easy installation and cost with our Home SOLAR WALL BATTERY. We are always ready to supply the first-class products and meet the various needs of the customers.

Our lithium battery storage utilizes advanced lithium iron phosphate technology to deliver exceptional performance and superior safety. Each LiFePO4 battery storage unit has received various international certifications, including MSDS, UN38.3, UL1973, CB62619, and CE-EMC. These certifications verify that our products meet the highest quality and reliability standards globally. In addition to delivering outstanding performance, our batteries are compatible with a wide range of inverter brands available on the market, providing customers with greater choice and flexibility. We remain dedicated to providing reliable and efficient energy solutions for both residential and commercial applications, catering to the diverse needs and expectations of our customers.

Inverter Compatibility Certification Display

What’s the battery capacity and power?

Capacity is the total amount of electricity that a solar battery can store, measured in kilowatt-hours (kWh). Most home solar batteries are designed to be “stackable,” which means that you can include multiple batteries with your solar-plus-storage system to get extra capacity.

How Does Solar Battery Storage Work?

A solar battery is a battery that stores energy from a solar PV system when panels absorb energy from the sun and convert it to electricity through the inverter for your home to use. A battery is an additional component which allows store energy produced from your panels and use the energy at a later time, such as in the evening when your panels are no longer producing energy.

  • 01. Long cycle life - product life expectancy of 15-20 years
  • 02. Modular system allows storage capacity to be easily expandable as power needs increase.
  • 03. Proprietary architecture and integrated battery management system (BMS) - no additional programming, firmware, or wiring.
  • 04. Operates at unparalleled 98% efficiency for more than 5000 cycles.
  • 05. Can be rack mounted or wall mounted in a dead space area of your home / business.
  • 06. Offer up to 100% depth of discharge.
  • 07. Non-toxic and non-hazardous recyclable materials - recycle at the end of life.
Detailed Application Scenario 1 Detailed Application Scenario 2 Detailed Application Scenario 3

Frequently Asked Questions

Q What chemistry is utilized in these solar batteries and is it safe?
Our batteries utilize Lithium Ferro Phosphate (LiFePO4) chemistry. This is widely recognized as the safest lithium-ion chemistry available, presenting zero fire risk and being completely non-toxic and non-hazardous.
Q Can I wire these solar batteries in series for higher voltage applications?
No, the built-in Battery Management System (BMS) must be wired in parallel configurations only. Wiring the batteries in series will void the warranty.
Q What is the typical lifespan and cycle life of the batteries?
The batteries offer a long product life expectancy of 15-20 years. They are designed to operate at 98% efficiency for over 5000 to 6000 cycles at 80% Depth of Discharge (DOD).
Q Are these lithium batteries compatible with standard inverters?
Yes, they are fully compatible with all standard off-grid inverters and charge controllers on the market. For sizing, we recommend keeping a 2:1 ratio for battery to inverter output.
Q What international standards and safety certifications do the batteries meet?
Every unit complies with major global safety and quality standards, having received international certifications including MSDS, UN38.3, UL1973, CB62619, and CE-EMC.
Q How are the batteries packaged for secure shipping?
Each battery unit is meticulously packaged within individual safety UN boxes with multiple protective layers. For larger volumes, they are stacked secure on pallets (12 units per pallet) to safeguard against physical damage during transit.
