Our 48V Powerwall Factory has demonstrated a high level of professionalism in the production and delivery of batteries. We boast advanced production facilities and a skilled technical team to ensure that every battery product undergoes rigorous quality control and testing. Our attention to detail spans from raw material procurement to final packaging, as we strictly adhere to standard operating procedures in order to guarantee product quality and customer satisfaction. Throughout the delivery process, we employ an efficient logistics management system for timely shipment, while implementing multi-layered packaging protection measures to ensure the safe arrival of our products into the hands of our customers.

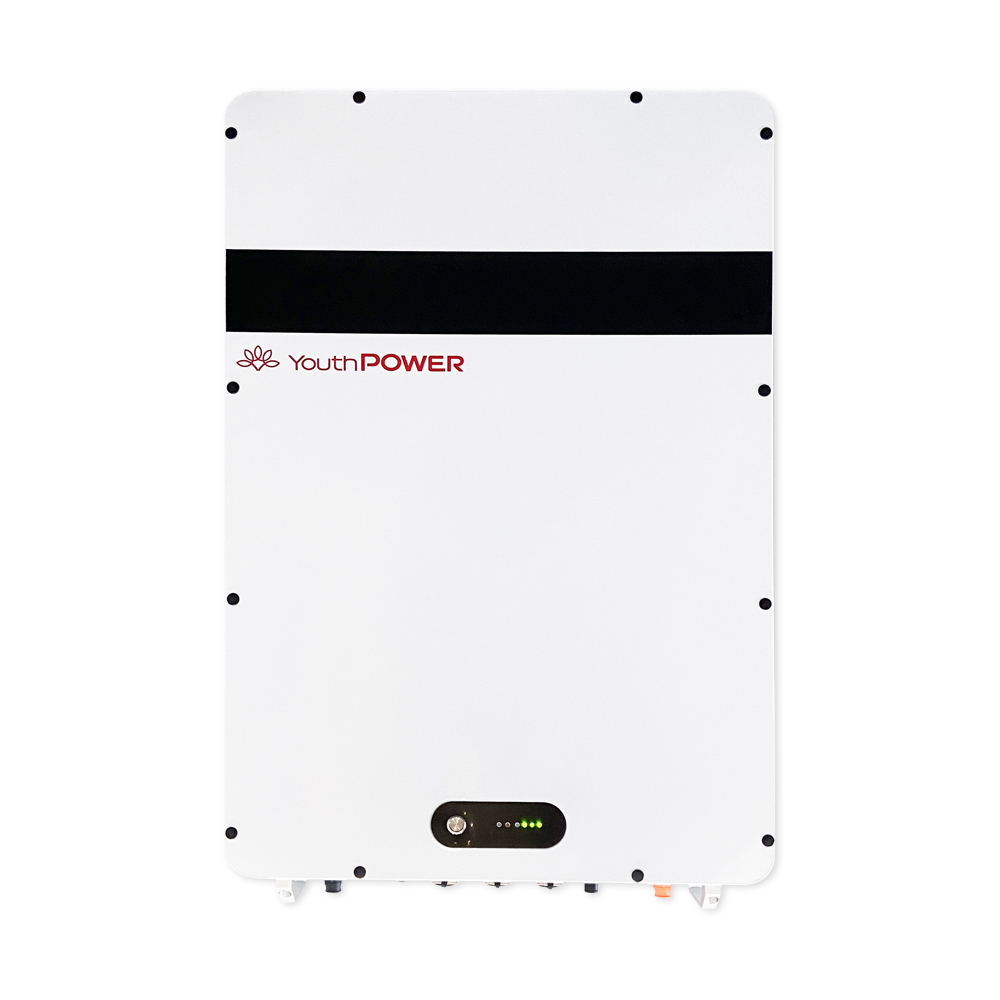

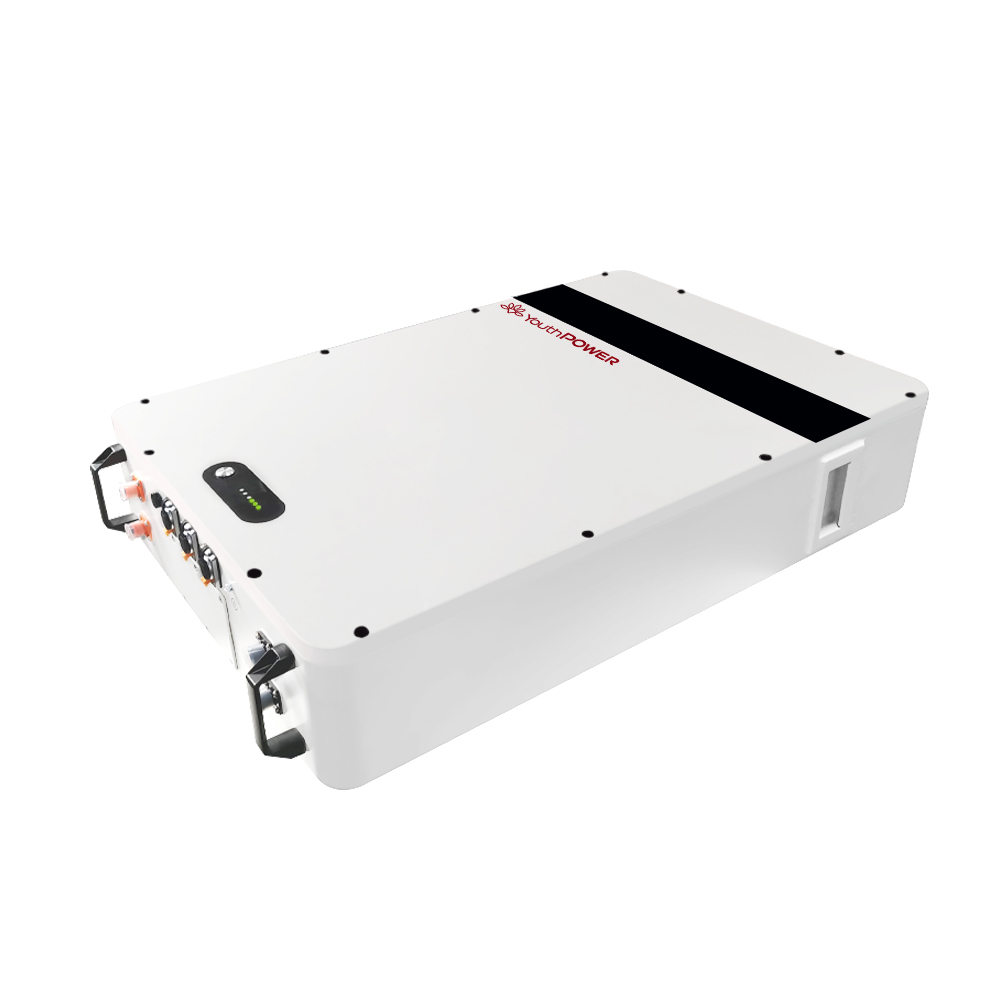

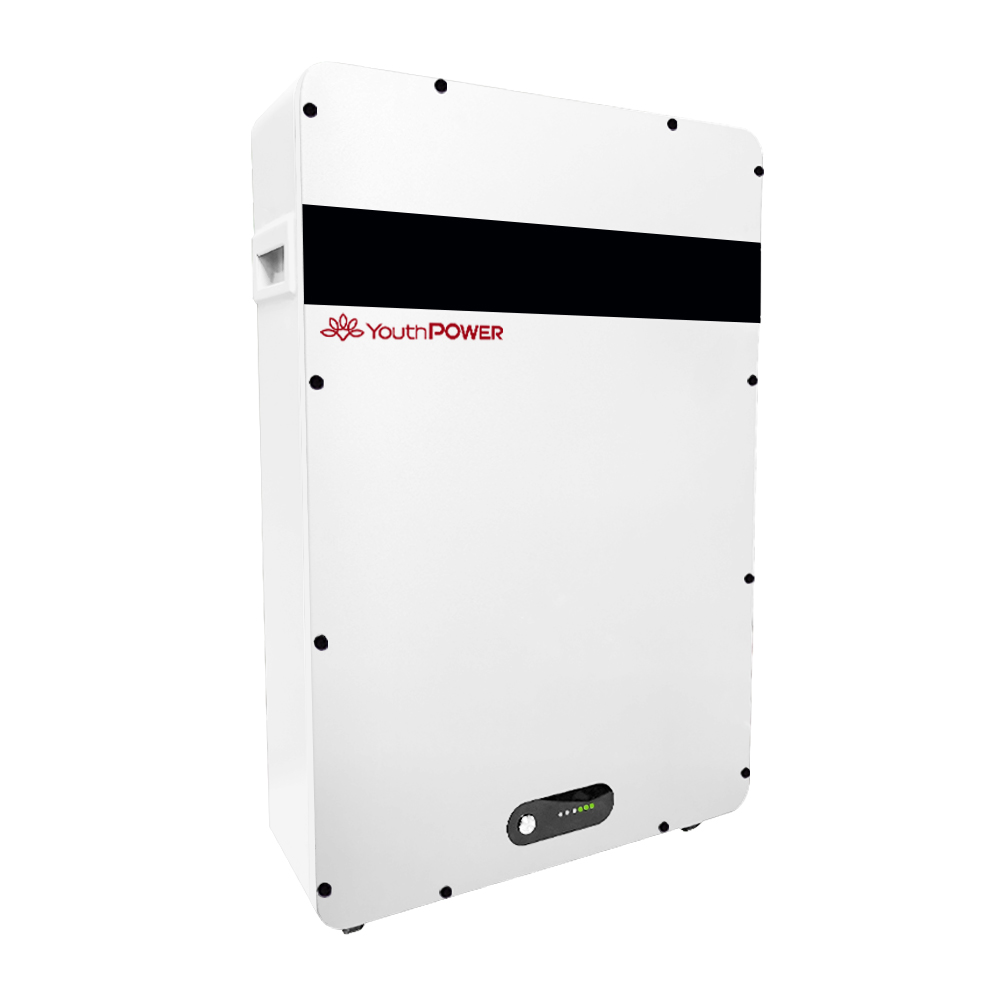

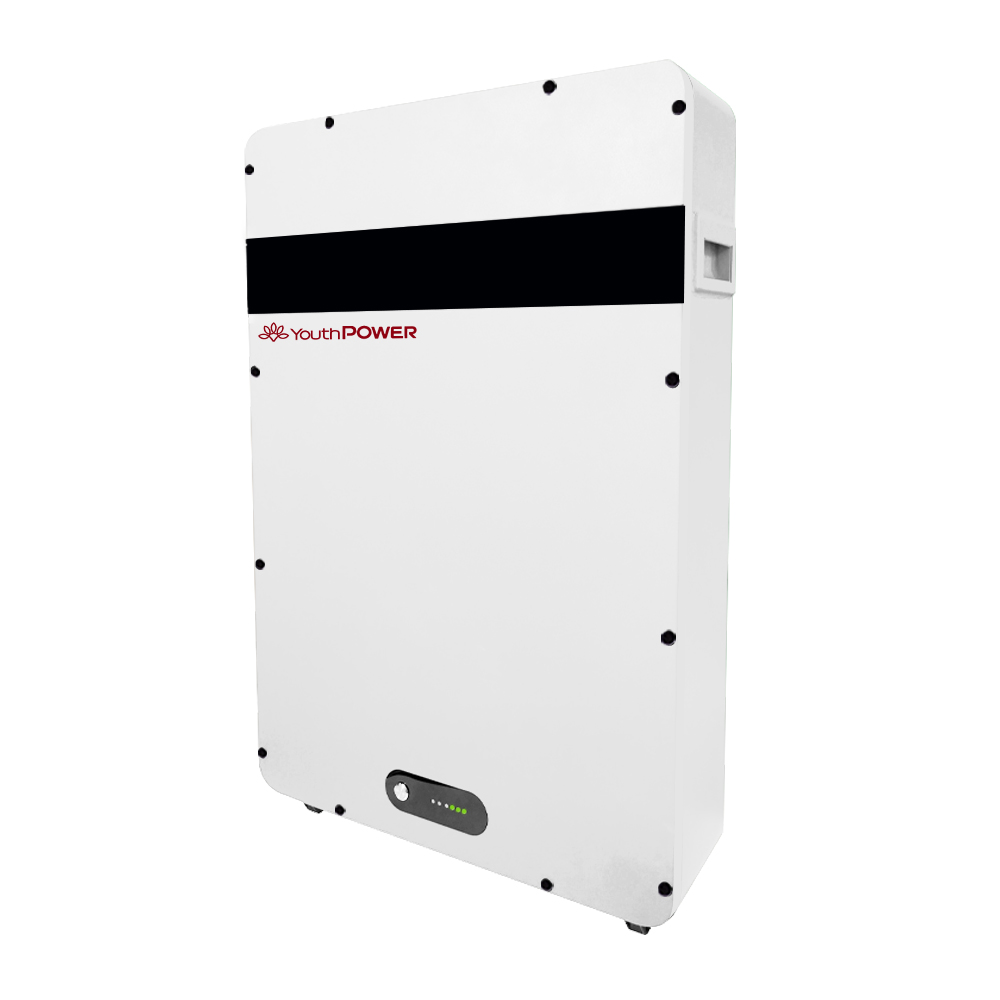

The 10.12kwh-51.2V 200AH waterproof wall-mounted battery exhibits exceptional packaging for delivery, meticulously designed to uphold safety and integrity during transportation. The swift and satisfactory delivery speed ensures that the product reaches our customers quickly and securely.
High voltage batteries | All In One ESS

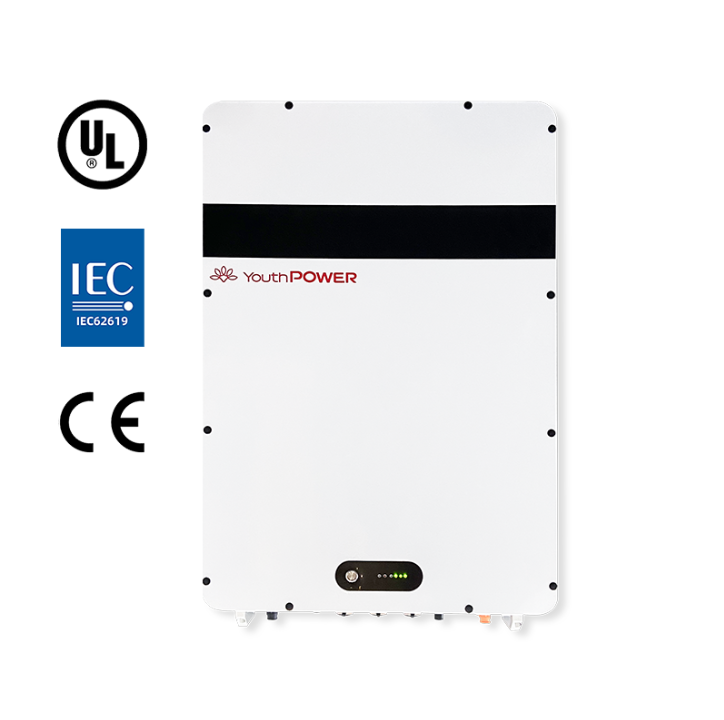

Stay compliant and worry-free! The 10kWh-51.2V 200Ah IP65 lithium battery utilizes advanced lithium iron phosphate technology to deliver exceptional performance and superior safety. It has MSDS, UN38.3, UL1973, CB62619, and CE-EMC approved. These certifications verify that our products meet the highest quality and reliability standards globally.
In addition to delivering outstanding performance, our batteries are compatible with a wide range of inverter brands available on the market, providing customers with greater choice and flexibility. We remain dedicated to providing reliable and efficient energy solutions for both residential and commercial applications, catering to the diverse needs and expectations of our customers.
| Item | General Parameter | Remark | |
|---|---|---|---|
| Model Number | YP WT10KWH16S-001 | ||
| Combination Method | 16S2P | ||
| Rated Capacity Typical | 200Ah | Standard discharge after Standard charge package | |
| Type / Model | 51.2V 200Ah, 10.24 KWH | ||
| Rated Capacity | 10.24 KW | ||
| Nominal Voltage | 51.2V DC | ||
| Voltage at End of Discharge | Single Cell 2.7V，Pack 43.2V | Discharge Cut-off Voltage | |
| Recommended Charging Voltage by Manufacturer | 57.6V or 3.60V/cell | Volta-meter (Serial*3.60V), Battery pack safe charging voltage | |
| Internal Impedance | ≤40mΩ | Under 20±5℃ Environment Temperature, the Usage Frequency of Fully Charge( 1KHz) , Use AC Internal Impedance test machine to test 20±5℃ | |
| Standard Charge | 80A | Ampere-meter, Maximum allowable continuous charging current of the battery pack | |
| Max Charging Current (Icm) | 100A | ||
| Upper Limit Charging Voltage | 58.4V or 3.65V/cell | Volta-meter (Serial*3.65V), Battery pack safe charging voltage | |
| Standard Discharge | 80A | Maximum continuous discharge current allowed by the battery pack | |
| Max Continuous Discharging Current | 100A | ||
| Discharge Cut-off Voltage (Udo) | 43.2V | Voltage of the battery when the discharge stopped | |
| Operation Temperature Range | Charge: 0~50℃ | ||
| Discharge: -20~55℃ | |||
| Storage Temperature Range | -20℃~35℃ | Recommend（25±3℃) ; ≤90%RH storage moisture range. ≤90%RH | |
| Battery system Size/Weight | L798*W512*H148mm / 102±3kg | Including Handle Size | |
| Packing size | L870*W595*H245 mm | ||
Scan the QR code below to download and install the "lithium battery WiFi" Android APP. For the iOS APP, please go to the App Store (Apple App Store) and search for "JIZHI lithium battery" to install it. (Refer to USER MANUAL for details.)
